American Tele Data is a national Firestop distributor for the Abesco FP200 Fire Rated Expanding Foam which is a fire rated polyurethane expanding foam designed to prevent the spread of fire and smoke from one compartment to another through gaps and voids of fire rated walls or floors.

ABESCO FIREFOAM RATINGS:

• Manufactured to ISO 9001:2000
• Corrosion resistant suitable for use in aggressive environments
• Certification for a wide range of cables Available in a range of sizes
• Very easy to install and provides total flexibility in cable routing
• Abesco graphite intumescent is unaffected by moisture
• Approved worldwide and recognized by independent authorities and tested in accordance with
  • ASTM E-814 (UL 1479)
  • BS 476
  • AS 1530.4
  • BS EN 1366-3

The FP200 Fire Rated Expanding Foam provides an insulating seal to concrete, brick, wood, metal, aluminum and steel. Abesco Fire Rated Foam, Firerated Foam, Fire Rated Expanding Foam, Abesco Fire Rated Expanding Foam, Firestop Distributor, FireStop Protection.The FP 200 expands to approximately 1 cubic foot per can- depending on temperature and humidity.Provides an insulating seal to concrete, brick, wood, metal, aluminum & steel .Environment friendly and 100% CFC Free

Abesco FP200 Fire Rated Expanding Foam is a fire rated polyurethane expanding foam designed to prevent the spread of fire and smoke from one compartment to another through gaps and voids of fire rated walls or floors. The FP200 Fire Rated Expanding Foam provides an insulating seal to concrete, brick, wood, metal, aluminum and steel.FP200 FR Expanding Foam properly fills gaps and voids in through penetration firestop systems. Under fire conditions the Abesco FP200 FR Expanding foam provides an effective insulating barrier and maintains the integrity of the firewall or floor. Compliments the Abesco CT120 Cable Transit system. HOW DOES IT WORK?

• Easy installation with improved finish
• Mild Pink color once dried
• Tested and assessed by independent authorities in accordance with:
  • ASTM E-814 (UL 1479) - 2 hours fire resistance
  • BS EN 1366-3
  • BS476 part 20 - 4 hours fire resistance
  • AS1530.4
• Extremely versatile solution
• CFC free
• Very easy to install and finish
• Excellent adhesion to most building substrates
• Unaffected by moisture or humidity when cured
• Cures to provide a strong semi-rigid seal
• Limited Warranty:
  Buyer assumes all risks of use, handling and storage of product not in strict accordance with label directions. Liability for any incidental or consequential damage or loss is specifically excluded at all times. Any implied warranty of merchantability or fitness for particular use is excluded. Seller will not accept liability for more than product replacement.
• Note: Container contains "Extremely Flammable" warning. Contents are under pressure. Container may explode if heated. Contents may catch fire.

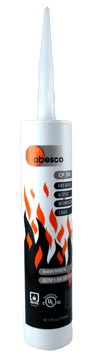

Also available Abesco Caulk

Abesco Firestop in 24 ounce cans expands to about 1 cubic foot- depending on temperature and humidity

FP200 FR Expanding Foam properly fills gaps and voids in through penetration firestop systems. Under fire conditions the Abesco FP200 FR Expanding foam provides an effective insulating barrier and maintains the integrity of the firewall or floor. Compliments the Abesco CT120 Cable Transit system.

$25.50 /per can Single Unit Price

Case Price $23.45 per can-plus shipping

Free Shipping 5 or more cases! CAN ONLY SHIP UPS GROUND

• Tested and assessed by independent authorities in accordance with:
  • ASTM E-814 (UL 1479) - 2 hours fire resistance
  • BS EN 1366-3
  • BS476 part 20 - 4 hours fire resistance
  • AS1530.4
• Extremely versatile solution
• CFC free
• Very easy to install and finish
• Excellent adhesion to most building substrates
• Unaffected by moisture or humidity when cured
• Cures to provide a strong semi-rigid seal
• Limited Warranty:
  Buyer assumes all risks of use, handling and storage of product not in strict accordance with label directions. Liability for any incidental or consequential damage or loss is specifically excluded at all times. Any implied warranty of merchantability or fitness for particular use is excluded. Seller will not accept liability for more than product replacement. Note: Container contains "Extremely Flammable" warning. Contents are under pressure. Container may explode if heated. Contents may catch fire.
Can only be shipped UPS Ground

WHERE DO I USE FP200 FR EXPANDING FOAM?

 Abesco FP200 FR Expanding Foam is suitable for use in most buildings where a seal is required for through penetrations in fire rated floors and walls (for Installation details please refer to technical data sheet)

Typical types of buildings FP200 FR Expanding Foam is commonly used are: Single and two family homes, hotels, condominiums, office and commercial buildings, hospitals, etc WHAT HAPPENS IN A FIRE SITUATION?

Under fire conditions Abesco FP200 FR Expanding Foam provides an effective insulating barrier, thereby maintaining the integrity of the wall or floor and preventing the spread of fire from one compartment to another.

• Tested and assessed by indpendent authorities in accordance with ASTM E-814 (UL1479) for up to 2 hours.
• Extremely versatile Solution
• CFC Free
• Very easy to install and finish.
• Excellent adhesion to most building substrates
• Unaffected by moisture or humidity when cured
• Cures to provide a strong semi-rigid seal

Part #	Description	PRICE
FP-20424	Abesco FP200 Fire Rated Expanding Foam - 24 oz. can ASTM E-814 (UL 1479) – 2 hours fire resistant BS EN 1366-3 BS476 part 20 – 4 hours fire resistance AS1530.4	$23.45 /per can-Case Price $25.50 per can-Single unit Price plus shipping Free Shipping 5 or more cases! CAN ONLY SHIP UPS GROUND

What is firestop?

Firestop and Firestopping is an integral part of fire protection engineering.  Firestop systems protect against the passage of flames, deadly gases and toxic smoke through openings that are created for penetrations, joints and gaps in fire-resistive walls, floors and floor/ceiling assemblies.  The integrity of fire-rated assemblies is restored by firestop systems.  Building codes require third-party tested systems to be installed whenever fire-rated construction is compromised by such openings.

Firerated Innerduct

Firestop and Firestopping is an integral part of fire protection engineering in all commercial buildings and are required by law in most states to satisfy mandated laws for commercial building fire protection.  Firestop systems protect against the passage of flames, deadly gases and toxic smoke through openings that are created for penetrations, joints and gaps in fire-resistive walls, floors and floor/ceiling assemblies.  The integrity of fire-rated assemblies is restored by firestop systems.  Building codes require third-party tested systems to be installed whenever fire-rated construction is compromised by such openings.

Telecomm cables found in a Hospital, the day before a Joint Commission Inspection. Cables were sleeved without having to be removed with our Split Sleeve & Bulkhead System.

What is meant by "active" and "passive" fire protection?

Active fire suppression includes mechanical systems such as sprinklers,  that are designed to extinguish fires after they have started.  Passive fire protection functions to contain fires within the areas in which they start, preventing loss of life by preventing the products of combustion (smoke, hot gasses and flames) from spreading throughout a building.

Why is "passive" fire protection necessary?

Fire is a dangerous enough phenomenon that redundancy in fire protection is necessary.  Having passive protection in place helps assure building occupants that there will be time to exit before gasses, fire and smoke spread throughout the building.  If  active systems fail, as they often do, then there is still a passive system in place for life safety.

It is the use of many products designed for specific firestop applications that comprise a complete passive firestop fire protection systems. When installed properly, these firestop products work in concert with one another to create effective barriers against the passage of flames, smoke, and superheated gases. Used is conjunction with other firestop fire protection methods, properly installed passive fire protection will save lives, protect property, and minimize business losses.

Joints

Construction joints must be sealed with joint systems, which will impart a fire resistance at least equal to those of the adjacent constructions so that overall fire resistance is not compromised.

Additional Information -Applications Click

Fire resistive joint systems are used in building construction to seal joints, and must be of the same or greater fire resistance (temperature) rating as the wall or floor containing the opening which they are designed to protect. Perimeter joint systems are most often used to seal a clearance separation between curtain walls and floors. They are designed to accommodate various movements induced

In fact, we’re one of the leading suppliers that can provide fully tested systems to firestop all of these scenarios:

From the leader in fire protection...
Our manufacturer partners have been creating innovative firestop systems for more than 25 years. Our complete line of fire protection products helps stop the spread of fire, smoke and toxic fumes. They’re easy to install and are approved for a wide variety of firestop applications including but not all: Underwriter’s Laboratories, Factory Mutual and Omega Point Laboratories. American Tele Data as a distributor can provide fully tested systems to firestop all of these scenarios:

• Structural steel
• Emergency circuitry
• Grease/air ducts
• Through penetrations
• Perimeter joints
• Fire resistive joints

Please Visit Our Product Links Below:

Firestop Products Data Sheets -Click

Abesco CP310 FR Acrylic Intumescent Caulk	Abesco Intumescent Mastic	Abesco CP500 FR WB Silicone Caulk	Abesco CP136 Firestop / Draft Sealant
Abesco Fire Rated Boards	Abesco Fire Rated Mortar	Abesco FP200 FR Expanding Foam	Abesco Pipe Collars
Abesco Pipe Collars	Abesco CT120 Cable Transits	Abesco Series 2 Pipe Wraps	Abesco Intumescent Dampers
Abesco Fire Rated Movement Joints	Abesco FR Fire Pillows	Abesco Cable Coating	Water Based intumescent coating



Abesco CT120 Cable Transits are designed to prevent the spread of fire from one compartment to another where electrical, data, and communication cables penetrate through separating walls and floors.

Abesco CT120 Cable Transits consist of a square section steel sleeve, which contains the heat reactive intumescent material. The unit has an integral hinged top which provides an easy retro-fit option where cables are pre-installed. Abesco CT Mounting Plates provide a quick and easy method of installing single or multiple CT120 Cable Transits. even in drywall partitions.

WHY USE ABESCO CT120 CABLE TRANSITS ?

• Manufactured to ISO 9001:2000
• Corrosion resistant suitable for use in aggressive environments
• Certification for a wide range of cables Available in a range of sizes
• Very easy to install and provides total flexibility in cable routing
• Abesco graphite intumescent is unaffected by moisture
• Approved worldwide and recognized by independent authorities and tested in accordance with
  • ASTM E-814 (UL 1479)
  • BS 476
  • AS 1530.4
  • BS EN 1366-3

WHERE DO I USE ABESCO CT120 CABLE TRANSITS ?

 Abesco CT120 Cable Transits are suitable for use in any building where electrical, data, or communication cables penetrate through fire rated compartment floors and walls, including drywall.

Typical types of buildings where Abesco CT120 Cable Transits are commonly used are :

Banking and finance buildings, data processing centers, TV and media studios, apartment buildings, hotels, office buildings, hospitals, airports, retail centers etc.

WHAT HAPPENS IN A FIRE SITUATION?

When exposed to the heat of a fire, the graphite based intumescent material contained in the Abesco CT120 Cable Transits expands rapidly to close and seal the inside of the sleeve, preventing the spread of fire from one compartment to another.

Additional Firestop Links Below:

Alliance for Fire and Smoke Containment and Control (AFSCC)

The American Tele Data Institute of Architects (AIA)

American Tele Data National Standards Institute (ANSI)

American Tele Data Society for Testing and Materials (ASTM)

Building Officials and Code Administrators International (BOCA)

Canadian Fire Safety Association (CFSA)

Factory Mutual Research Corp (FMRC)

OTHER PRODUCTS

Abesco supply a wide range of Firestop products which provide the specifier, engineer and contractor with cost effective solutions to most passive fire protection problems experienced on todays construction projects.
