• Galvanized steel or powder coated to provide a smooth protective surface for cable pulling
• Can be supplied pre-assembled to cable trays or installed in the field with #05-2-500985 Splice Washer Assys. 4/plate
• Available in easy to handle 59” lengths
• Fits cable trays 6, 8, 12, 18 and 24 inches wide

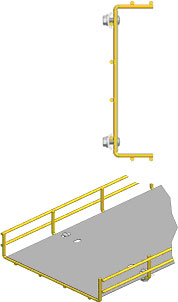

Solid Bottom Plate
Cable Tray Cover
Model
Dimensions Width x Length
05-CM21-04
4" x 59”
05-CM21-06
6" x 59”
05-CM21-08
8" x 59”
05-CM21-12
12" x 59”
05-CM21-18
18" x 59”
05-CM21-24
24" x 59”
Cable Tray Cover
Cable Tray Raised Floor Pedestal Supports
05-CM74-3 Angle Pedestal Support Kit - includes (2) Angle Supports and (2) "U" clamps
Clamps fit up to a 1 ½” dis. Pedestal
05-CM75-3 Raised Floor Pedestal Bridge Support Kit - includes (1) Bridge Support and (2) "U" clamps
Spans 24 inch center to center floor pedestals up to 1 1/2" dia.
Center Support Installation Hardware
CM50 - 1/4 inch Threaded Rod Kit. Includes (2) 1/4 inch flat washer, (2) 1/4 inch nuts, (1) 6 inch silicione protective tube and (1) center support with hold down bracket. Threaded rod not included.
CM51 - 3/8 inch Threaded Rod Kit. Includes (2) 3/8 inch flat washer, (2) 3/8 inch nuts, (1) 6 inch silicone protective tube and (1) center support with hold down bracket. Threaded rod not included.
Catalog Numbering System (example below is for an 8 inch center hung tray using 1/4 inch threaded rod)
CM5008
Tray Widths: 2 inch = 02, 4 inch = 04, 6 inch = 06, 8 inch = 08, 12 inch = 12, 18 inch = 18, 24 inch = 24
Trapeze Support Installation Hardware
CM52 - 1/4 inch Threaded Rod Kit. Includes (4) 1/4 inch flat washers and (4) 1/4 inch nuts. Threaded rod not included.
CM53 - 3/8 inch Threaded Rod Kit. Inclueds (4) 3/8 inch flat washers and (4) 3/8 inch nuts. Threaded rod not included.
Catalog Numbering System (example below is for an 18 inch trapeze hung tray using 3/8 inch threaded rod)
CM56 - Raised floor support, 4 inch height, available widths 2, 4, 6, 8, 12, 18 and 24 inches.
Catalog Numbering System (example below is for an 8 inch wide raised floor support)
CM5608
Widths: 2 inch = 02, 4 inch = 04, 6 inch = 06, 8 inch = 08, 12 inch = 12, 18 inch = 18, 24 inch = 24
Universal Beam Clamp
Universal Beam Clamp for hanging of threaded rods
The universal beam clamps are made from zinc plated steel and fit 5/8” max beam flange.
05-CM100 fits 1/4”-20 threaded rod in bottom or side tapped hole
05-CM101 fits 3/8”-16 threaded rod in bottom or side tapped hole
Tray Extension
Offset Loop
CM58
Ø.187"
(use 4 per tray)
Curved Tray Extension CM58-5
(use 4 per tray)
Waterfall
CM59 (4 inch width)
Ø.187"
Universal Loop**
CM70xx
02 = Ø.187"
03 = Ø.250"
Ratchet
CM99
*Anchor to floor or wall using 3/8 inch bolt & washer. Anchor hardware not included.
**Use 1 5/16 inch bolt on double loop end
Requires NO bending or cutting; ready–made 4-way, “T” and “L” shaped junctions
All sizes conforms to the National Electric Code, UL Classified
Acts as a continuous ground conductor; with built in splices
Adapts to difficult architectural designs to accommodate changes in direction and elevation of cable runs
Cuts installation time up to 50 percent
Provides strength, rigidity without additional hardware; has smooth edges
Manufactured in an array of protective, powder-coated, colored finishes to minimize corrosion
Alternative finishes:
Hot dip galvanized
304 stainless steel
316L stainless steel
Powder coating is standard finish
2"x2" up to 6"x36" Custom sizes available
Innovative Design
PRO-10's innovative design is based on pre-fabricated junctions/intersections and the ability to provide powder coated finishes while maintaining ground. The design eliminates the need to cut or bend sections or install a separate ground wire. PRO-10 is UL classified as to its suitability as an equipment grounding conductor only.
No connecting hardware required. All support hardware available to match finish. Powder coating is standard finish.
Custom sizes available.
Installation
PRO-10's wire cable tray systems require only one tool and very few accessory items for installation. Pre-fabricated junctions/intersections reduce man-hours by eliminating cutting and fabrication in the field. With center hung trapeze, wall or floor mount accessories, PRO-10 is prepared to handle the toughest installations.
Customer Service
PRO-10's wire cable trays and accessories are available for quick delivery from stock. PRO-10 is made in the U.S.A., shortening lead and delivery time. For special applications, our customer service employees are eager to help in design and product availability.
Straight sections have a grid pattern of 2 inches x 2 inches or 2 inches x 4 inches and are available in standard widths from 2 inches up to 36 inches. Lengths can be ordered in 1, 2, 5, 8 and 10 feet with a depth/height of either 2, 4 or 6 inches. See finish chart for standard colors; Chrome is the standard. Custom sizes and colors are available.
Pre-fabricated junctions have a grid pattern of 2 inches x 2 inches or 2 inches x 4 inches and are available in standard widths from 2 inches up to 24 inches with a depth/height of 2, 4 or 6 inches. Junctions/intersections lengths are standard: 12 inches wide or less come 2 feet in length and junctions/intersections more than 12 inches wide come 3 feet in length. All drops are available in 12, 18 or 24 inches in length.
See finish chart for colors; chrome is the standard. Custom colors are available.
Junctions/intersections include interconnecting hardware.
Pre-fabricated reducers are available in standard configurations with a grid pattern of 2 inches x 2 inches or 2 inches x 4 inches or and a depth/height of 2, 4 or 6 inches. All reducers are 2 feet in length.
See finish chart for standard colors; safety yellow being the standard. Custom colors are available.
Accessories and hardware kits that provide support and cleanly finish the installation. With an assortment of threaded rod kits and various extensions, there is support for floor, wall or ceiling mounted cable tray options to conveniently complete the job.
See finish chart for standard colors; chrome being the standard.
Custom colors are available.
Wire Management Products
The Wiremaid U.S.A. Products Division of Vutec Corporation entered the cable tray arena with the development of PRO-10 and M.E.2 wire cable tray systems.
PRO-10 cable tray is an innovative and cost-effective system that easily adapts to the most difficult installations. Designed for the low voltage industry and developed with the architect, engineer and installer in mind, PRO-10's pre-fabricated junctions/intersections and ease of installation make it a cost-effective choice of contractors throughout the United States.
M.E.2 cable tray management system is manufactured with rigid .187 diameter zinc-plated steel wire, welded in a two inch by four inch grid facilitating easy cable break outs while supporting the cable. The open grid design prevents dirt build-up and dust experienced in closed cable trays.
?
PRO-10 Wire Cable Tray
Wiremaid U.S.A. has just created the "Cable Tray Maker,” an easy-to-use cable tray designer that takes the guess work out of ordering a cable tray system. Click on a cable tray part, choose your options and add the quantity. It creates a bill of materials that you can print or email.
• Requires NO bending or cutting; ready–made 4-way, “T” and “L” shaped junctions
• Acts as a continuous ground conductor; no grounding splices
• Adapts to difficult architectural designs to accommodate changes in direction and elevation of cable runs
• Cuts installation time up to 50 percent
• Provides strength, rigidity without additional hardware; has smooth edges
• Manufactured in an array of protective, powder-coated, colored finishes to minimize corrosion
• Factory fabricated junctions save installation time and cut costs.
• Seven or 10 foot length straight tray sections can be cut to length or formed by cutting side wires to change routing elevation at the installation site.
• Two x 4 inch grid provides easy cable routing in or out of tray sections.
• Available metal tray divider for cable separation.
