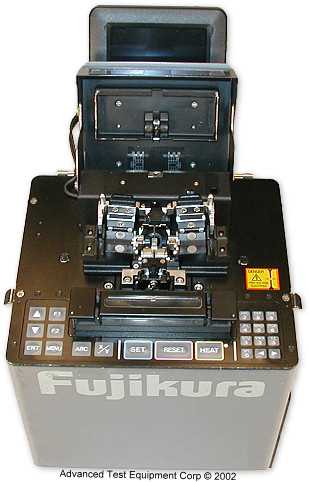

AFL FSM-30s Mass Fusion Splicer-AFL FSM-30s Fusion Splicer- AFL Fujikura FSM-30s Mass Fusion Splicer-AFL FSM-30s Mass Fusion Splicers- AFL Mass Fusion Splicer- Fujikura Fusion Splicers

American Tele Data Tele Data Is Your One Source For All Your Fiber Optic Fusion Splicers

Our Fujikura fusion splicers are the most widely used in the world, and known for their performance, productivity and reliability. And all our fusion splicer splicing equipment is backed by our Technical Support team. Designed to meet the needs of today's high fiber density networks, the FSM-40R24 has the capability to splice ribbons as large as 24 fibers as well as single fibers. Ultra compact and lightweight, this unit features a built-in AC adapter and a dual axes optical path system to provide fully automatic, low splice loss performance in less than 50 seconds for SM, MM, DS, and NZDS fiber types.

Fusion Splicing Systems

World's Smallest Fusion Splicer -click here

Features:

Specifications:

AFL FSM-30R12 Mini Mass Fusion Splicer w/built-in heater-Part No: S012792 :

AFL FSM-30R12 Mini Mass Fusion Splicer with built-in heater. Comes with Fiber holders (1 set), HJS-02 hot jacket stripper with DC cord, CT-20 cleaver, BTR-04 field replaceable battery, ADC-07 AC adapter/battery charger, FP-5 splice protection sleeves and a rugged carrying case. The new Fujikura FSM-30R12 brings a new level of productivity and capability to mass fusion splicing. The well proven and market leading mass fusion splicing technology of previous Fujikura mass splicers is now provided in an extremely small and light weight mini-splicer. Improved immunity to ambient conditions and slide-in modular powering units (including battery) provide unprecedented mass fusion splicing capability in remote and outdoor splicing locations. The FSM-30R12 takes mass fusion splicing productivity to a new plateau with 12 fiber splicing time cut to one third that of previous generation mass splicers.

AFL FSM-30R12-Mini Mass Fusion Splicer Kit- AFL FSM-30R12 Mini Mass Fusion Splicer with built-in heater. Comes with Fiber holders (1 set), HJS-02 hot jacket stripper with DC cord, CT-20 cleaver, BTR-04 field replaceable battery, ADC-07 AC adapter/battery charger, FP-5 splice protection sleeves and a rugged carrying case.

The new Fujikura FSM-30R12 brings a new level of productivity and capability to mass fusion splicing. The well proven and market leading mass fusion splicing technology of previous Fujikura mass splicers is now provided in an extremely small and light weight mini-splicer. Improved immunity to ambient conditions and slide-in modular powering units (including battery) provide unprecedented mass fusion splicing capability in remote and outdoor splicing locations. The FSM-30R12 takes mass fusion splicing productivity to a new plateau with 12 fiber splicing time cut to one third that of previous generation mass splices.

AFL BTR-04 Spare Battery (30R)
AFL ADC-07 AC Adapter/Battery Charger
AFL HJS-02 Hot Jacket Stripper for Ribbon Fibers
AFL BTA-02 Camcorder Battery/Adapter
AFL FAT-02 Fiber Arrangement Tool
AFL FAT-04 Fiber Arrangement Tool
AFL FAA-03 Ribbon Forming Adhesive (4 oz. bottle)
AFL FAA-03 Ribbon Forming Adhesive (0.5 liter bottle)
AFL FH-12 (12 fibers) Fiber Holder
AFL FH-10 (10 fibers) Fiber Holder
AFL FH-8 (8 fibers) Fiber Holder
AFL FH-6 (6 fibers) Fiber Holder
AFL FH-4 (4 fibers) Fiber Holder
AFL FH-2 (2 fibers) Fiber Holder
AFL FH-250 (250um coated single fiber) Fiber Holder
AFL FH-900 (900um tight buffered single fiber) Fiber Holder
AFL 16S/30R Electrodes (pair)
AFL DCC-08 Charge Cord
AFL DC Power Cord (Cigarette Lighter)
AFL FSR-02 Recoater

Our Fujikura fusion splicers are the most widely used in the world, and known for their performance, productivity and reliability. And all our fusion splicer splicing equipment is backed by our Technical Support team. Designed to meet the needs of today's high fiber density networks, the FSM-40R24 has the capability to splice ribbons as large as 24 fibers as well as single fibers. Ultra compact and lightweight, this unit features a built-in AC adapter and a dual axes optical path system to provide fully automatic, low splice loss performance in less than 50 seconds for SM, MM, DS, and NZDS fiber types.

40R24 Fiber Fusion Splicer-40R24 Fiber Fusion Splicer-Part No: S012956

Part No: S012956-AFL FSM-40R24 Mini Mass Fusion Splicer-AFL FSM-40R24 Mini Mass Fusion Splicer with built-in heater. Comes with FH-24 Fiber holders (1 set), AC Cord, Operation Manual and a rugged carrying case.

40R24 Fiber Fusion Splicer

Designed to meet the needs of today's high fiber density networks, the FSM-40R24 has the capability to splice ribbons as large as 24 fibers as well as single fibers. Ultra compact and lightweight, this unit features a built-in AC adapter and a dual axes optical path system to provide fully automatic, low splice loss performance in less than 50 seconds for SM, MM, DS, and NZDS fiber types. Individual splice loss is estimated for each splice, and 36 pre-programmed splicing modes and five pre-programmed heater modes allow for specialized splicing and various splice protector sleeve types. Memory also permits 30 user defined splice mode settings and 10 splice protection sleeve heater settings, as well as storage of downloadable splice data for 80 24-fiber splices or 320 single fiber splices. The large, color LCD screen displays all 24 fibers simultaneously in alternate axes.

Designed to meet the needs of today's high fiber density networks, the FSM-40R24 has the capability to splice ribbons as large as 24 fibers as well as single fibers. Ultra compact and lightweight, this unit features a built-in AC adapter and a dual axes optical path system to provide fully automatic, low splice loss performance in less than 50 seconds for SM, MM, DS, and NZDS fiber types. Individual splice loss is estimated for each splice, and 36 pre-programmed splicing modes and five pre-programmed heater modes allow for specialized splicing and various splice protector sleeve types. Memory also permits 30 user defined splice mode settings and 10 splice protection sleeve heater settings, as well as storage of downloadable splice data for 80 24-fiber splices or 320 single fiber splices. The large, color LCD screen displays all 24 fibers simultaneously in alternate axes.

Features:

* Compact and light with built-in AC adapter
* Electrode and fiber guide positions automatically adjust for different fiber counts
* Uses standard Fujikura fiber holders
* Color LCD screen displays all 24 fibers simultaneously
* Self diagnostic mode
* Stores splice data for 80 24-fiber splices

Application:

* New construction including single fibers or fiber ribbons as large as 24 fibers

AFL FSM-40R24 Mini Mass Fusion Splicer Kit- Part No: S012980 :

AFL FSM-40R24 Mini Mass Fusion Splicer with built-in heater. Comes with FH-24 Fiber holders (1 set), AC Cord, Operation Manual and a rugged carrying case. Additional items included in the kit are a HJS-03-24 Hot Jacket Stripper (for up to 24-fiber ribbon), HJS-03-24PA Power Assist Tool For the HJS-03-24 Stripper, CT-20 Cleaver and the FC-01 Fiber Collecto for the CT-20 Cleaver.

Designed to meet the needs of today's high fiber density networks, the FSM-40R24 has the capability to splice ribbons as large as 24 fibers as well as single fibers. Ultra compact and lightweight, this unit features a built-in AC adapter and a dual axes optical path system to provide fully automatic, low splice loss performance in less than 50 seconds for SM, MM, DS, and NZDS fiber types. Individual splice loss is estimated for each splice, and 36 pre-programmed splicing modes and five pre-programmed heater modes allow for specialized splicing and various splice protector sleeve types. Memory also permits 30 user defined splice mode settings and 10 splice protection sleeve heater settings, as well as storage of downloadable splice data for 80 24-fiber splices or 320 single fiber splices. The large, color LCD screen displays all 24 fibers simultaneously in alternate axes.

Related Products Attachments
AFL CT-20 High Precision Cleaver
AFL FC-01 Fiber Collector System
AFL HJS-03-24 Hot Jacket Stripper w/ DC Cord
AFL HJS-03-24PA Power Assist Tool
AFL FAT-04 Fiber Arrangement Tool
AFL FH-2 (2 fibers) Fiber Holder
AFL FH-4 (4 fibers) Fiber Holder
AFL FH-6 (6 fibers) Fiber Holder
AFL FH-8 (8 fibers) Fiber Holder
AFL FH-10 (10 fibers) Fiber Holder
AFL FH-12 (12 fibers) Fiber Holder
AFL FH-16 (16 fibers) Fiber Holder
AFL FH-24 (24 fibers) Fiber Holder
AFL FH-250 (250um coated single fiber) Fiber Holder
AFL FH-900 (900um tight buffered single fiber) Fiber Holder
AFL Electrodes (pair)
AFL One year extended warranty (splicers)
AFL Two year extended warranty (splicers

Affinity AFS1000 Automated Fusion Splicer

The Affinity™ AFS1000 Automated Fusion Splicing System is designed to meet the needs of today's optical manufacturers

50S Fusion Splicer

50S Fusion Splicer

The new FSM-50S Fusion Splicer’s leading-edge features, including unprecedented size, weight, and ruggedness, make it the first core-alignment splicer truly optimized for field use, including FTTH applications

50R12 Mass Fusion Splicer

50R12 Mass Fusion Splicer

The FSM-50R12 offers numerous improvements to increase productivity and provide additional flexibility. A new "auto load" feature provides for fast and easy placement of the fiber holders into the splicer. The FSM-50R12 also benefits from a greatly improved tube heater which shrinks a 12 fiber splice protection sleeve in approximately 45 seconds. Other enhancements include larger capacity batteries, dual direction monitor, and real time arc calibration. The FSM-50R12 quickly attaches to our newly redesigned ASW-02 workstation, making field portability a breeze.

40R24 Fiber Fusion Splicer

40R24 Fiber Fusion Splicer

Designed to meet the needs of today's high fiber density networks, the FSM-40R24 has the capability to splice ribbons as large as 24 fibers as well as single fibers. Ultra compact and lightweight, this unit features a built-in AC adapter and a dual axes optical path system to provide fully automatic, low splice loss performance in less than 50 seconds for SM, MM, DS, and NZDS fiber types.

AFL FSM-30R12 Mini Mass Fusion Splicer w/built-in heater-Part No: S012792 :

AFL FSM-30R12 Mini Mass Fusion Splicer with built-in heater. Comes with Fiber holders (1 set), HJS-02 hot jacket stripper with DC cord, CT-20 cleaver, BTR-04 field replaceable battery, ADC-07 AC adapter/battery charger, FP-5 splice protection sleeves and a rugged carrying case. The new Fujikura FSM-30R12 brings a new level of productivity and capability to mass fusion splicing. The well proven and market leading mass fusion splicing technology of previous Fujikura mass splicers is now provided in an extremely small and light weight mini-splicer. Improved immunity to ambient conditions and slide-in modular powering units (including battery) provide unprecedented mass fusion splicing capability in remote and outdoor splicing locations. The FSM-30R12 takes mass fusion splicing productivity to a new plateau with 12 fiber splicing time cut to one third that of previous generation mass splicers.

17S Fusion Splicer

17S Fusion Splicer

The FSM-17S establishes a new standard for single fiber "fixed v-groove" type fusion splicers with a host of improvements including a 35 second tube heater, dual position monitor, and a longer battery life.

40F Fusion Splicer

40F Fusion Splicer

To keep up with the development of DWDM optical communication devices, we developed the FSM-40F for high-strength splicing. The FSM-40F splices dissimilar fiber combinations, especially Erbium-doped fiber to single-mode fiber using patented sweep arc functions.

40PM Fusion Splicer

40PM Fusion Splicer

To keep up with the development of DWDM optical communication devices, we developed the FSM-40PM for splicing of PM fibers. The FSM-40PM splices dissimilar fiber combinations, especially Erbium-doped fiber to single-mode fiber using patented sweep arc functions in addition to excellent PM capabilities. Designed for accuracy and increased productivity, the 40PM offers fully automatic splicing modes for PANDA and 3M Tiger ™ fibers.

FSR-02 Fiber Recoater

FSR-02 Fiber Recoater

To meet the small package requirements of OEMs, AFL Telecommunications offers the FSR-02 fiber recoater. The FSR-02 eliminates the need for splice protection sleeves by automatically recoating a colored or non-colored fiber back to the original coating diameter after a splice is complete. Programmable for recoating lengths from 4 to 50mm and proof testing from 4 to 20 Newtons, this unit stores data for 100 cycles which are easily downloadable to a PC. For splices that may fail the proof test, the breakage load is displayed. A compact and low profile design makes for comfortable bench top operation in the factory environment.
