Telco T- 6 Modular Routing Switch- Telco T-6 Managed Switch- Gigabit Switch-All Layer Gigabit Switch- Multi-Layer IP Switch- 10/100/1000 Nebs Compliant Switches

"The results show that Telco Systems' T5 Compact outperforms Cisco's Catalyst 2950G-48 convincingly in every test performed"- Click Here

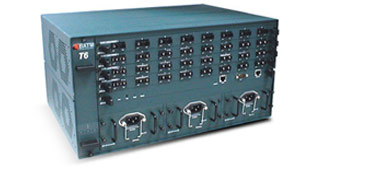

American Tele Data Tele Data Telco Systems’ T6 multi-layer IP switch delivers high-performance packet classification, switching, routing and transport for service providers and private enterprise. It supports up to 32 Gigabit Ethernet ports delivering full wire-speed, non-blocking performance. Its comprehensive policy enforcement and traffic shaping features efficiently manage precious network resources. In addition to this high level switching and routing, T6 also offers Gigabit interface converter modules with dual SC, LC and MT-RJ fiber interfaces, as well as GBIC and 1000BaseT.
T6 offers Layer 2 Ethernet switching and Layer 3 IP routing at full wire-speed over 48,000,000 pps. It is fully manageable via SNMP, CLI or the Web. The CLI has a common look and feel with other industry leaders and administration occurs via a well-known interface. Web management uses embedded Java ™-based management technology.



Chassis and Power Suppliers
Part Number Description
BTI-0630 BTI-0630 Multi-gigabit switching chassis with 4 free slots, does not include power supplies, CPU module, or fan module.
BTI-5P-6-ACPS 110/220V AC power supply for BTI-0530P and BTI-0630
BTI-5P-6-DCPS -48VDC power supply for BTI-0530P and BTI-0630
BTI-0630-CPU Management CPU module for BTI-0630
BTI-0630-FAN Fan module for BTI-0630

Note: ** Minimum operating configuration: chassis + cpu module + fan module + 1 power supply

1000 Mbps Modules
Part Number Description Connector Distance
BTI-8GT 8 ports 10/100/1000BaseT RJ-45 100
BTI-8GSX-SC 8 ports 1000BaseSX multi-mode (850nm) Dual SC 550m
BTI-8GSX-MT 8 ports 1000BaseSX multi-mode (850nm) MT-RJ 550m
BTI-8GSX-LC 8 ports 1000BaseSX multi-mode (850nm) LC 550m
BTI-8GLX-SE 8 ports 1000BaseLX single-mode (1550nm) Dual SC 70km
BTI-8GLX-SC 8 ports 1000BaseLX single-mode and multi-mode (1310nm) Dual SC 550m MM/6 km SM
BTI-8GLX-LD 8 ports 1000BaseLX single-mode (1310nm) Dual SC 14km
BTI-8GLX-EX 8 ports 1000BaseLX single-mode (1550nm) Dual SC 40km
BTI-8GLX-LC 8 ports 1000BaseLX single-mode and multi-mode (1310nm) LC 550m MM/6 km SM

Software
Part Number Description
BiNOSCenter Elements Management System for networks
BiNOS-Adv BiNOS + OSPF, multicast routing, and DiffServ
BiNOS-Pro BiNOS + Traffic Shaping
BiNOS-Pro-Plus BiNOS Adv + BiNOS Pro + BGPv4 for T5Pro and T6 only
BTIVIEW-OVW SNMP GUI for HP Open View management software for Windows NT
BATVIEW-WIN SNMP GUI for Castle Rock SNMPc management software
BATVIEW-SUN SNMP GUI for HP OpenView management software for Sun Systems
