American Tele Data Tele Data carries the Telco Systems BATM/Telco Systems' BATM/Telco System's T5 Compact optical Fast Ethernet routing switch provides an
optimal solution for mid and long distance intelligent Layer 3 broadband services. Ideal
for Fiber-to-the-Home (FTTH) and centralizing remote sites applications. The T5
Compact's super-efficient size, only 1RU in height, affords not only the capacity of
physically larger backbone routing switches, but also the economy offered by workgroup
switches.

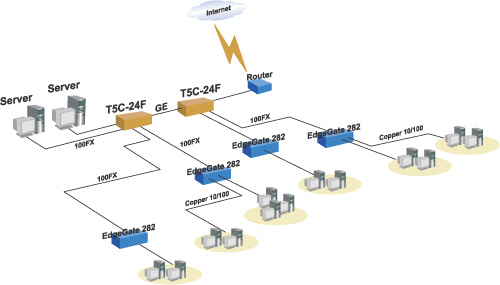

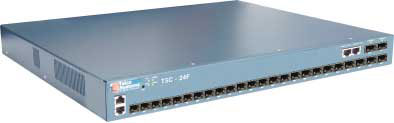

T5 Compact 24F supports 24 Fast Ethernet plug-in (SFP) or fixed multi mode ports, 2
Gigabit Ethernet fixed 10/100/1000BaseT and 2 Gigabit Ethernet plug-in miniGBIC
(SFP) ports. Residential access and FTTH applications are tailored exactly to the T5
Compact 24F capabilities offering. SFP pluggable 100FX modules grant ultimate
flexibility in choosing the right transceiver to any application need. Multi-mode, singlemode
and Bi-Directional single-mode interface elevates Telco System's T5C-24F into the
optimal platform in terms of flexibility and cost-effectiveness.
Copper Gigabit Ethernet provides cost-effective high-speed uplink and cascading
capabilities, plug-able miniGBIC (SFP) optical Gigabit Ethernet interfaces allow network
extension over large distances.

Ultra-Compact High-Density Gigabit Ethernet Aggregation/Distribution
Routing Switch

News Flash!! For Carriers- ISP's Targeting FTTH Market

BATM/Telco Systems' T5 Compact Gigabit Ethernet Routing Switch provides an optimal
solution for Gigabit Ethernet Intelligent Layer 3 Aggregation and Distribution services.The
T5 Compact's super-efficient size (only 1RU in height), includes not only the capacity of
physically larger backbone routing switches, but also the economy offered by workgroup
switches.

The TT5 Compact 24G supports 24 Gigabit Ethernet plug-in (SFP) ports plus 4 Dual PHY fixed
10/100/1000BaseT Ethernet ports. T5C-24G supports either AC or DC feeds.
The T5 Compact Routing Switch is the optimal platform for service providers for many
aspects. The T5C-24G capabilities provide the required solution for many application
needs, from the Metro Core arena to the Metro edge and enterprise boundaries, either
serving as the aggregation and/or distribution layer in a Metro application or as a core
device in medium and small Metro access and enterprise networks. Users can benefit
from its perfect compatibility to standards (for flawless interoperability), its smooth
upgradeability and scalability options with versatile interface types, and feature-rich
capabilities that allow the service provider to provide any IP-driven service from a single
unique platform.

The resident BiNOS (BATM/Telco Systems Inter Networking Operating System) software
anticipates the administration, management, QoS, and security performance
requirements of enterprise networks by supporting a breadth of IEEE standards and
industry conventions, such as Access Control Lists. Hardware based implementation of
BiNOS mandated policies enables the T5 Compact Routing Switch to perform Layer 2
switching and Layer 3 routing at wire speed. Field upgrades of BiNOS software from
Layer 2 to Layer 3 use a patented procedure that incurs no downtime.

T5 Compact Routing Switches are fully manageable via SNMP, CLI, or the Web with
either In-band (IB) or Out-of-Band (OOB) management tools. The CLI complies with the
de facto industry standard and enables administration via a user friendly interface. Web
management is made possible by utilizing embedded Java™ based user friendly
management technology.

Administrators can use industry-standard SNMP-based network management systems, or
BiNOSCenter. The BiNOSCenter is BATM/Telco Systems EMS/NMS Element/Network
Management System and provides the network operator with a state-of-the-art, powerful,
SNMP based configuration, monitoring and maintenance platform. The BiNOSCenter
can manage any SNMP-based element.

.

Benefits and Features

* Advanced L3, non-blocking Routing Switch
* Ultra Compact Size – 1RU height, under 12’’ depth
* 24 x 100BaseFX plug-in (SFP) ports plus 4 fiber/copper Gigabitall wire speed Ethernet ports
* Maximum savings on infrastructure. Use a single fiber instead of two!
* Unique option for plug-in Fast and Gigabit Ethernet transceivers including:
• CWDM, Extra Long-Haul (more than 100Km) optics,
• Bi-Directional, and many more...
* High level of redundancy with AC or DC Power Supplies
* Enhanced Security and Maximum Protection with:
• SNMPv3, 802.1x, SSH, RADIUS,
• Secured Telnet, Advanced Access
• Control List (ACL), and many more...
* IPv4 to IPv6 migration path and awareness
* Complete Professional Management tools for best control of your network
• IB and OOB management with standard industey CLI, WEB management via Embedded Java™ and unique Alarms management
• HPOV and SNMPc integration keys
• BiNOSCenter – your EMS platform
* Unique feature-rich support including:
• 802.1p 8 priority queues
• DHCP Relay & Server
• RMON & Syslog
• TLS for E-2-E tunneling
• Port trunking
• Rate limiting and Traffic Shaping for efficient bandwidth control, many more...
* Lowest power consumption in the Industry

Multi Service Access
VoIP
Channel Banks
T1/E1 Electrical-to-Optical Converters
Frame Relay
Integrated Access
Mini DCS
Multiplexers
FTTH
Battery Backup

.

Telco T- 5 Compact Switch

"The results show that Telco Systems' T5 Compact outperforms Cisco's Catalyst 2950G-48 convincingly in every test performed"- Click Here

Cost-effective, high-performance, ultra-compact IP solution

NEBS Compliant
Dense 10/100 Mbps copper configuration provides high capacity in a small space
Choice of fiber interfaces for uplink
Cost-effective port trunking capabilities
Non-blocking architecture provides maximum data throughput

Standards

IEEE 802.1d Spanning Tree
IEEE 802.1p Priority Queuing
Interfaces
10/100/1000BaseT/TX
Connectors:
RJ-45
Transmission:
Full/Half-Duplex
Range:
100m
1000BaseSX/1000BaseLX
Connectors:
LC
Transmission:
Full/Half-Duplex
Optical Budget:
9db
Fiber:
62.5/125 or 50/125 micron, 850nm,
9/125 micron, 1310nm
Range:
220m (62.5/125), 550m (50/125),
10 km (9/125)
Switching Characteristics
Technology:
ASIC based parallel Store-and-Forward
Bridging:
IEEE 802.1d Spanning Tree Algorithm
Address Table:
64K MAC addresses
Forwarding Rate:
Up to 148,800 pps / 100 Mbps ports
Up to 1,488,000 pps / 1 Gbps ports
Flow Control:
802.3x for full duplex. and back-pressure
for half duplex transmission
Routing Characteristics
Technology:
ASIC based IP routing
Address Table:
64K IP Addresses, 17 default gateways
Forwarding Rate:
Up to 148,800 pps / 100 Mbps ports
Up to 1,488,000 pps / 1 Gbps ports
Management
SNMP Client
MIBs:
RFC959 File Transfer Protocol, RFC1350 TFTP Protocol.
RFC1905 SNMPv2, SNMPv3*, RFC2068 HTTP., SYSLOG.
RFC1902 SMIv2, RFC 1157 SNMP, RFC 1213 MIB II, RFC 1493,
Bridge MIB, RFC 1591 DNS, RFC 1643 EtherLike MIB,
RFC 1724 RIPv2, MIB,RFC 1757 RMON, RFC 2239 MAU,
IETF Dot1p Dot1q MIB, BATM Enterprise MIB
Telnet:
CLI
Internet:
Java based Web management
Interface:
In-Band/Out-of-Band
Local Interface:
RJ-45
SW Download:
via TFTP
Management Features
VLANs:
Up to 4k VLANs per 802.1q
Bridging:
Spanning Tree, Aging
Class of Service:
4 queues per port
Monitoring:
Single/Multi port mirroring
General
Dimensions:
(W) 442 x (H) 44 x (L) 304 mm
(19" x 1U x 12")
Power:
36-60VDC, 100-240 VAC, 50/60 Hz, 60W max.
Weight:
5.2 kg (11.5 lb)
Operating Temp.:
0ºC - 45ºC
Humidity:
up to 90%, non-condensing
Safety & Immunity
EN 60950 Safety of Information Technology Equipment
EN 60825 Radiation Safety of Laser Products
FCC Class A, VCCI Class 1, UL, CUL, CE (EMI, EMS, LVD)
EN55022 (EMC)
EN 61000 (Immunity)d
