T1/E1
Switches-Telco Edgelink 810 switch, 4 Port T1 Digital Cross Connect Switch, 4
Port E1 Digital cross Connect Switch-T1 E1 Integrated Switches
American Tele Data
Tele Data carries the 4 Port T1 Compact Digital Cross-Connect Switch from Telco
Systems. The 4 Port E1 Digital cross connect switch from Telco Systems reduces
T1 line costs by 50% or more. Telco Systems’EdgeLink 410, a compact 4-port
T1 or E1 digital cross-connect switch, is ideally suited to a variety of network
applications. Any time-slot can be mapped to any other time-slot for fully non-blocked
circuit routing.
Compact
T1/E1 Access Platform
Integrate

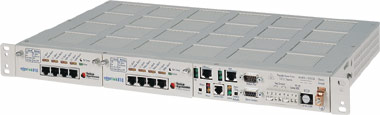

T1/E1, V.35/RS422 access into a single compact unit! EdgeLink810 is an intelligent
highspeed platform that integrates digital cross-connect switching and data port
access into a compact package. Engineered for high reliability and wide operating
temperature range, the EdgeLink810 is ideal for edge-ofnetwork grooming and backhaul,
especially in environmentally harsh conditions. The unit occupies only one rack
mounting space, which in combination with front access to all field connections,
makes EdgeLink810 suitable for the smallest cell site and base station installations.
EdgeLink810 is the smallest 8 port cross connect available.
Wireless network
operators, Internet Service Providers (ISP’s) and carriers can deploy EdgeLink810
in a variety of applications. These include wireless base station backhaul, E911
services, subscriber location and public network interconnection over T1/E1 or
highspeed data circuits. EdgeLink810 can also be used to protect T1/E1 lines for
disaster recovery and alternate path solutions.
EdgeLink810 supports all transport
systems and can be directly connected to leased T1/E1 lines using built-in CSU’s.
Compact Size = Flexibility Two module slots provide support for 8 x T1 or E1 cross-connect
switching or combinations of T1/E1 cross-connect switching and data port terminations
T8
T1/E1 ports in 1 rack space-Integrated T1 CSU’s-Combined
digital cross-connect and data multiplexer-Front
access to all field connections-Temperature
hardened-Reduces
T1/E1 costs by 50% or more-Optimizes
T1/E1 backhaul networks-Saves
valuable equipment space-Saves
cost of external CSU’sHelps
maintain high quality of service and satisfied customers
Specifications
Below:
T1
Interface
Line Rate: 1.544 Mbps, +/- 30 ppm
Line Code: AMI/B8ZS
Framing: D4, ESF, per TR54016 and TR62411
Equalization: DSX-1, CSU line build out A,B,C
Line Impedance: 110 ohm, balanced
Synchronization: Internal, or external from any T1 port
Performance Monitoring: ANSI T1.403, last 24 hours of data in
15 minute intervals
Monitors all network ports
LED Alarm Indicators: Red (T1 Major Alarm), Yellow (T1 Minor Alarm)
Alarm Contacts: Dry Form C, Major/Minor
Connectors: RJ48C
Loopback: Local and remote per T1 port generates and
responds to Loop-Up and Loop-Down commands as defined in T1.403
Regulatory: FCC Part 15, Class B
FCC Part 68
DOC CS-03
UL 1950, CSA
E1 Interface
Line Rate: 2.048 Mbps, +/- 50 ppm
Line Code: HDB3
Framing: ITU G.704
Equalization: up to 6 dB cable loss
Line Impedance: 75 ohm, unbalanced or 120 ohm, balanced
Synchronization: Internal, or external from any E1 port
Performance Monitoring: ITU G.821
LED Alarm Indicators: Red (E1 Prompt Alarm), Yellow (E1 Service
Alarm)
Alarm Contacts: Dry Form C, Prompt/ Service
Connectors: BNC (75 ohm), RJ45 (120 ohm)
Loopback: Local and remote per E1 port
Regulatory: BAPT 221 ZV MU9, IEC 950
EN41003, EN5022 Class B,
EN50082-1, EN5082-2, EN60950
CTR 12/13, NTR 4
Data Ports
Data Rate: Nx56/64 Kbps, N = 1 to 24 or 1 to 30 channels
Interface: DCE synchronous
V.35, RS449 and RS530 interfaces provided
Connectors: DB37, with cables providing Winchester
37 pin (V.35), DB25 (RS530), DB37
(RS449)
System Management
Embedded SNMP Management
PPP
Local Craft VT-100/ANSI Terminal (Menu-driven)
Office Alarms (Major, Minor)
Cross Connection
Routing Tables: 4 routing tables (1 active, 3 backup)
Protection Switching: Upon T1/E1 alarm conditions, time-ofday
or manual intervention
Power Requirements
DC Power Input: +/- 20 to +/- 60 VDC
Power Consumption: 10 watts
Environmental
Operating temperature: -20° to +70° C
Humidity: to 95% non-condensing
Dimensions
Height: 1.75 in. / 4.45cm
Width: 17 in. / 43.2 cm
Depth: 12.75 in. / 32.4 cm
Mounting: 19 inch or 23/24 inch equipment rack
LAN Interface: 10BaseT port, PPP port
VT100: RS232 port, 9600 bps, RJ12 connector
Remote Access: Via multipoint management channel (64 Kbps for
SNMP,
9600 bps for VT100)
