• Auto equalization and skew compensation for a perfect display using CAT5, 5e, 6, or 7 cable

• Multi-platform support – PS/2, USB, Sun, Unix, Mac, or serial devices

• Each computer port can be configured for connection to a computer or serial device

• Advanced security for configuration and access

• Configuration and access through advanced OSD

• Remote access over CATx cable

• Extremely modular architecture for easy expansion and cascading

• Built in high performance video bus to stack units for expansion

• Models available for 0 - 16 users and  1 - 64 CPUs

• User station models available with 1 KVM

  connection and 1 RJ45 link or 1 KVM connection

  and 4 RJ45 links

• Local port for quick access to the switch

• Lifetime free flash upgrades

• Designed and manufactured in the USA

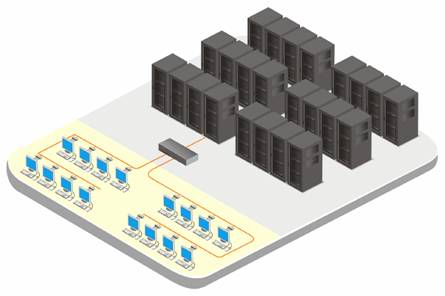

Leave it to Rose to come up with such a feature packed product. The Xtensys universal console switch features the latest in technology and can be deployed and scaled to any computer environment from the simplest to the most complex.

You can connect either a miniature Rose KVM transmitter or a serial cable to the RJ45 computer input connectors on the unit and it will auto-detect the interface. If video is present it will automatically measure the distance and equalize the video for maximum clarity.

At the user side connect a KVM user station to access any computer. The built in Onscreen Display and hot-key system allows you to select a computer using simple keyboard commands or from a sortable list and switch to it instantly.

The XTR-11 user station connects a single KVM station to a single KVM port on an Xtensys switch.  For the ultimate in connection flexibility, the XTR-14 user station permits a single KVM station to connect to a KVM port on four different Xtensys switches, four standalone servers/computers, or a combination of Xtensys switches and standalone servers/computers.
