CRV-6SLP-VS/SW - VideoSplitter CAT5, 1 video in to 6 video out, Power Supply
VideoSplitter DVI
DVI Multi-Channel Distributor
Splits digital video from a single DVI video source to 2 or 5 digital displays simultaneously.
Display output on digital displays or HDTV
HDTV resolution: 480i, 480p, 720i, 720p, and 1080i
Digital monitor resolution: 1920 x 1200
FEATURES AND BENEFITS
the Rose aDVANTAGE...
Compatible with DDWG, DVI standards
Available with 1 x 2 and 1 x 5 models
Selectable PC or HDTV outputs
Single-link video bandwidth 165MHz
Standard DVI-D connections
Video resolutions up to: 1920 x 1200 (DVI Monitor) & 1080i (HDTV)
Easy to install
Supports HDCP compliant devices
Compatible with DVI standard by DDWG
The Video Splitter DVI from Rose Electronics is available in two models. One model takes a single DVI video input and distributes it to two DVI monitors and the other model distributes the video signal to five DVI monitors.
Each model can easily be configured to distribute the DVI video to DVI monitors or, with the flip of the feature switch, connect to video projectors and HDTV’s.
The Video Splitter DVI supports a video bandwidth up to 165 MHz and standard
DVI-D connectors.
Display a DVI video
source on 2 or 5
Digital Displays

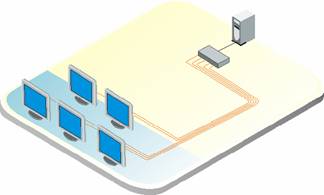

typical application

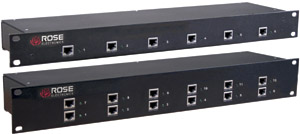

VideoSplitter CAT5
VIDEO SPLITTER OVER CAT5
Splits, amplifies and extends video from a single source to 6 or 12 monitors simultaneously over CAT5 cable
Video resolutions up to 1600 x 1200
Each remote monitor can be up to 1,000 feet away using industry standard CAT5 UTP cable
Optional Audio and Serial
FEATURES AND BENEFITS
the Rose aDVANTAGE...
Extends a single video source to 6 or 12 video monitors using CAT5 twisted pair, solid core cables up to 1,000 feet
Optional Audio and Serial
Video resolutions up to:
1600 x 1200 at 200 feet
1280 x 1024 at 300 feet
1024 x 768 at 1,000 feet
(Video resolution will vary depending on the remote unit model used)
Easy to install
Rack mountable chassis
The VideoSplitter CAT5 is the extender of choice for businesses big and small that need to extend a single video source to remote monitors.
The VideoSplitter CAT5 allows you to position 6 or 12 video monitors up to 1,000 feet away from a video source using common twisted pair CAT5 cable. Each of the 6 or 12 CrystalView modules connect to a CrystalView remote unit and a video monitor.
The VideoSplitter CAT5 is designed for plug-and-play operation. First, connect the computer to the local unit. Next, route the CAT5 cable between the local and remote units. Finally, connect the keyboard, monitor, and mouse to the remote unit. Now it is ready to use.
Presentations, slide shows, schedules, and other types of common information can be centrally generated and displayed simultaneously on all remote monitors.

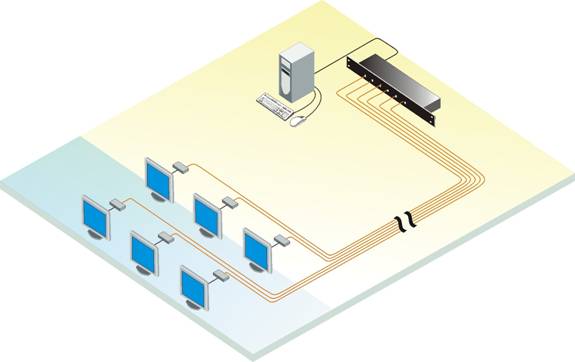

typical application
Product Part Number
Description
CRV-6SLP-VS/SW
VideoSplitter CAT5, 1 video in to 6 video out, Power Supply
CRV-12SLP-VS/SW
VideoSplitter CAT5, 1 video in to 12 video out, Power Supply
CRV-6SLP-VS/AUD/SW
VideoSplitter CAT5, 1 video in to 6 video out, with serial & audio, Power Supply
CRV-MR
CrystalView Mini Remote - CAT5 Receiver -150 Ft
CRV-R
CrystalView Remote - CAT5 Receiver -1000 Ft
CRV-R1V
CrystalView Plus Remote - CAT5 Receiver Auto Skew-1000 Ft
Cable Part Number
Description
CAB-08UTPnnn
Cable, UTP CAT5, RJ45M to RJ45M
CAB-C1Y0000Cnnn
UltraCable Hi-Res, PC to Switch, DB25M to VGA, (Video only)
