• Local KVM port for configuring the UltraLink Lite and direct local access to the computer or KVM switch

• Connect to a remote computer, server, or KVM switch directly or over a network

• Resolution up to 1280 x 1024 @ 75hz

• Solid-state embedded unit for maximum reliability

• Compatible with all Rose Electronics KVM products and most other KVM devices

• Easy to install and configure

• Scaling of computer images reduces the amount of
  data sent and permits fast screen updates over slow
  links (Modes: scaled, scrolled, or full-screen)

• Quad screen mode allows you to view four servers
  from one screen when connected to a KVM switch

• Password security prevents unauthorized
  configuration and access

• User ID and password required for remote access

• Remote client application is simple to install, use, and
  requires no licensing

• Front panel shows power and current connected input port (Network, serial, or local KVM)

• Free lifetime firmware upgrades provide new features and support of new technology and devices available at rose.com

• Flash memory technology

• Made in USA

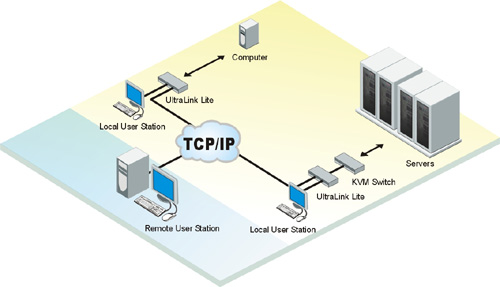

UltraLink Lite sets a new standard for an economical way to remotely manage server room environments. It allows you to access your computers and servers locally or across your network. Connect the unit to a Rose Electronics KVM switch and you now have access to as many as 1,000 computers or servers.

The UltraLink Lite is easy to install and configure. Connect the unit, assign an IP address, install the remote viewer software, and it’s ready to use. The sophisticated scaling feature allows you to position any size image of your server’s video anywhere on your screen. With this feature, you can monitor servers while working on other tasks in another window. Network workstations can connect to multiple UltraLink Lites and display each connection in separate viewer windows.

The remote client viewer program is designed to simplify accessing the remote computers. Click on the connect icon, login, and you will see a crisp, clear high quality image of the remote computer.
