• Available in 4, 8, or 16 CPU port models, expandable to as many as 1,000 CPUs
• Connect to a remote computer, server, serial device, or KVM switch directly or remotely over IP using any supported  Internet browser
• Local KVM port for configuring the UltraConsole 2 and direct local access to the unit
• Control PCs, SUN, UNIX, Linux, USB, and serial devices from a single console station locally, over the network, or from anywhere in the world

• Up to 4 remote users can connect to the same remote user port simultaneously.  Users connected to the same remote user port share all functions

• Password security prevents unauthorized configuration and access.  The Security system can be set-up requiring a user ID, password and profile for each user.  This prevents unauthorized configuration and controls computer access
• Resolution up to 1600 x 1200
• Easy to install and configure
• On-screen menu informs you of connection status between units in an expanded system

• Plug-in expansion cards and the unit’s modular design make it simple to install, expand, and maintain

• Remote application (RealVNC or Java applet) can be installed directly from the unit

• Pre-configuration feature allows installation without powering down most servers

• Multi-lingual menu (English, French, German, Spanish, Italian, Portuguese)

• Solid-state embedded unit for maximum reliability

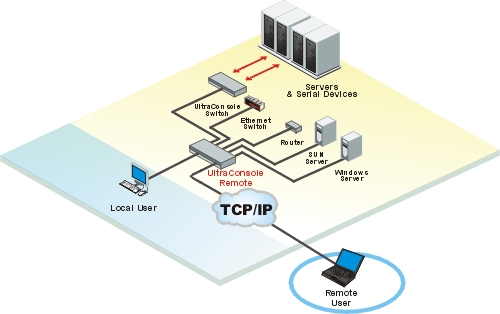

The UltraConsole Remote 2 represents the latest in remote KVM access over IP technology. The UltraConsole Remote 2 allows for a user station to connect to four, eight, or sixteen computers or serial devices per chassis, expandable to as many as 1,000 computers or serial devices.  The user station can be access the UltraConsole Remote 2 locally, over the local network, or over IP from anywhere in the world using any supported web browser.

The UltraConsole Remote 2 series is available in 1 x 4,
1 x 8, and 1 x 16 models.  Units easily connect to expansion units to make a seamless and truly scalable remote management solution.

The advanced design of the UltraConsole Remote 2 uses networking communication technology to reduce cost, eliminate single points of failure, and increase reliability.

The on-screen menus make configuring, installation, and monitoring easy with on-screen instructions and help.  Use the on-screen menus to name computers, select computers, view connections, set-up users, configure system security, and other features.

The UltraConsole Remote 2 provides serial support to access computers, routers, Ethernet hubs, UNIX devices and more.  It can perform as a “VT100/VT220” terminal emulator with an eight-page scroll buffer.

 Security, flash memory, system status and many other features ensure that the UltraConsole Remote 2 will streamline your data center or server room and provide access to your system from any location, locally, or around the world.
