RV1-CSKVT17/KVM-1X8DVUA - RackView KVM - DVI / USB, 1U KVM Drawer, 17" LCD, 1x8 DVI / USB KVM Switch, KVM switch controls on front of RackView, PS/2, USB connectors, Touchpad, Fold Forward

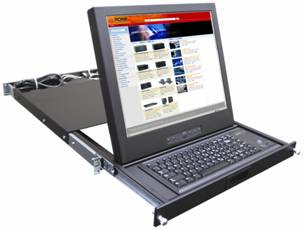

RackView Fold-Back










RACK MOUNTED LCD & KEYBOARD DRAWER

1U models with 15", 17", or 19" LCDs
LCD folds back
Video resolution up to 1280 x 1024
Available with Trackball or Touchpad mouse
PS/2, Sun, or USB connectors
DVI available on 19" models
Compatible with PC's, UNIX, Sun, and Mac

Optional integrated KVM switch

    FEATURES AND BENEFITS   the Rose aDVANTAGE...

  • The following model features are available:
    • 1U - 15" TFT/LCD high-resolution monitor
              1024 x 768 @ 75Hz
    • 1U - 17" TFT/LCD high-resolution monitor
              1280 x 1024 @ 75Hz
    • 1U - 19" TFT/LCD high-resolution monitor
              1280 x 1024 @ 75Hz
    • DVI and VGA support on 19" models
    • Tactile keyboard with separate numeric keypad
    • Integrated touchpad or optical mouse
    • PS/2 connections
    • USB connections
  • Built-in single or multiple user KVM switch options provide access to as many as 1,000 computers
  • Quick and easy rack mounting installation
  • Supports AT/XT, PS/2, USB, and UNIX computers
  • Front panel conceals unit when it is not in use
  • Full size keyboard for typing comfort
  • Keyboard available in international variations
  • Monitor OSD allows for easy adjustment of color, brightness, contrast, position, and shape of the display
  • Front panel controls for quick adjustments
  • Easy-glide KVM drawer can be mounted at any height in a standard 19 inch rack
  • Made in USA


The RackView offers the latest, most efficient way to organize and streamline your server rooms and multiple computers. The RackView is a rack mountable KVM drawer neatly fitted in a compact pull-out drawer. This easy-glide KVM drawer contains a high-resolution TFT/LCD monitor, a tactile keyboard, and a high-resolution touchpad or optical mouse.

The RackView can be placed at any height within a standard 19" rack. This offers the operator the maximum in comfort and takes up a minimum amount of rack space. The front panel conceals the unit when it is not in use.






typical application



Product Part Number Description
RV1-KVM15D RackView, 1U KVM Drawer, 15" LCD, PS/2 Keyboard + Trackball, Fold Backward
RV1-KVM17D RackView, 1U KVM Drawer, 17" LCD, PS/2 Keyboard + Trackball, Fold Backward
RV1-KVM19B RackView, 1U KVM Drawer, 19" LCD, PS/2 Keyboard + Trackball, Fold Backward
RV1-KVM15/U RackView, 1U KVM Drawer, 15" LCD, USB Keyboard + Trackball, Fold Backward
RV1-KVM17/U RackView, 1U KVM Drawer, 17" LCD, USB Keyboard + Trackball, Fold Backward
RV1-KVM19/U RackView, 1U KVM Drawer, 19" LCD, USB Keyboard + Trackball, Fold Backward
RV2-KVM15B RackView, 2U KVM Drawer, 15" LCD, PS/2 Keyboard + Trackball, Fold Backward
RV1-KVT15A RackView, 1U KVM Drawer, 15" LCD, PS/2 Keyboard + Touchpad, Fold Backward
RV1-KVT17A RackView, 1U KVM Drawer, 17" LCD, PS/2 Keyboard + Touchpad, Fold Backward
RV1-KVT19A RackView, 1U KVM Drawer, 19" LCD, PS/2 Keyboard + Touchpad, Fold Backward
RV1-KVT15/U RackView, 1U KVM Drawer, 15" LCD, USB Keyboard + Touchpad, Fold Backward
RV1-KVT17/U RackView, 1U KVM Drawer, 17" LCD, USB Keyboard + Touchpad, Fold Backward
RV1-KVT19/U RackView, 1U KVM Drawer, 19" LCD, USB Keyboard + Touchpad, Fold Backward
RV1-KVM15C/JP RackView, 1U KVM Drawer, 15" LCD, PS/2 Japanese Keyboard + Trackball, Fold Backward
RV1-KVM17B/JP RackView, 1U KVM Drawer, 17" LCD, PS/2 Japanese Keyboard + Trackball, Fold Backward
RV1-KVM19A/JP RackView, 1U KVM Drawer, 19" LCD, PS/2 Japanese Keyboard + Trackball, Fold Backward
