CRK-2DTXPD1D  - CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Single Video, DVI, PS/2

CrystalView DVI CATx



    DVI & CATx KVM EXTENDER



Extends your KVM station up to 400 feet over CATx cable


Supports DVI-D video
  Up to 1920 x 1200 resolution
  Dual version allows additional KVM near computer


    FEATURES AND BENEFITS   the Rose aDVANTAGE...

  • Supports:
    • DVI-D video mode

    • PS/2 or USB keyboards and mice

  • Extend a KVM station up to 400' from a CPU over CATx cable

  • Video resolutions up to 1920 x 1200 @ 60Hz

  • Supports 18–Bit color (256,000 colors)

  • Single and Dual models available

  • Compatible with all Operating Systems

  • Fully automatic KVM sharing

  • Status and Data error indicators on all units

  • Easy installation and operation


The CrystalView DVI CATx is the KVM extender of choice for businesses that need to extend and operate a computer, server, or KVM switch from a great distance.  The CrystalView DVI CATx makes this possible by the use of standard CAT5, 5e, 6, or 7 cable.  You can fully operate and control a computer or server from as far away as 400 feet using standard CATx cable. It supports all combinations of DVI monitors and video cards.

The system consists of two Units, a transmitter and a receiver. The transmitter connects to your CPU’s keyboard, DVI monitor, and mouse connectors, or to a Rose KVM switch.  The receiver connects to a keyboard, DVI video monitor and mouse or KVM station.  The transmitter and receiver are connected together with CATx industry standard cable.  The receiver can be up to 400 feet from the transmitter using CAT5, 5e, 6, or 7 cables.

All models are available with both transmitter and receiver KVM access. The transmitter’s KVM access allows an additional KVM station to be connected to the transmitter unit. If your system requires dual video, the CrystalView DVI CATx dual video model can fully support it.

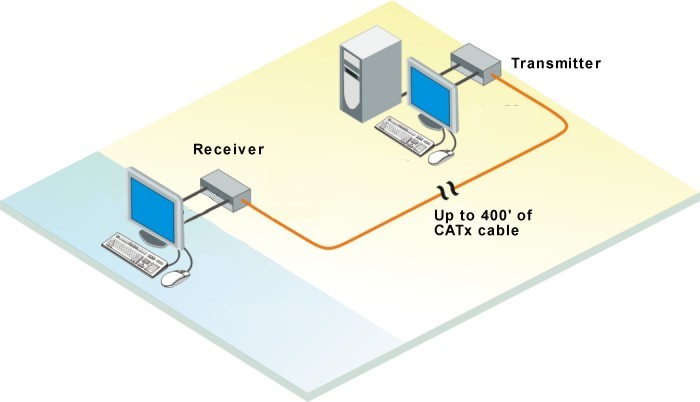

typical application


Product Part Number Description
CRK-2DTXPD1D      CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Single Video, DVI, PS/2
CRK-2DTXUD1D      CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Single Video, DVI, USB
CRK-2DTXPD2D      CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Dual Video, DVI, PS/2
CRK-2DTXUD2D      CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Dual Video, DVI, USB

Cable Part Number Description
CAB-CXDVII66MMnnn UltraCable Hi-Res, PC to Switch, DVI-PS/2 to DVI-PS/2 (M-M)
CAB-CXV66MMnnn UltraCable Hi-Res, PC to Switch, VGA-PS/2 to VGA-PS/2 (M-M)
CAB-CXVMMnnn UltraCable Hi-Res, PC to Switch, VGA to VGA (M-M)
CAB-DVIMMnnn UltraCable Hi-Res, PC to Switch, DVI to DVI (M-M)
CAB-08UTPnnn Cable, UTP CAT5, RJ45MM
