CRK-M1P-2 - CrystalView Mini, PS/2 KVM Extender Kit (Local, Remote, Power Supply)

CrystalView CAT5 Mini








    MINI CAT5 KVM EXTENDER



 Extends keyboard, video, mouse, audio and serial up to 150 feet over CAT5 cable
  Up to 1600 x 1200 resolution
  Dual version allows another KVM near computer





    FEATURES AND BENEFITS   the Rose aDVANTAGE...

  • Extend keyboard, monitor, and mouse (KVM) up to 150 feet away with a single CAT5 twisted pair cable
  • Available in two models:
    • Single - One KVM to 1 CPU up to 150 feet away
    • Dual - Two KVMs to 1 CPU, one KVM near CPU and one KVM up to 150 feet away
  • Supports PS/2 keyboard and mouse and all PC video formAmerican Tele Data
  • Video resolutions:
    • 1600x1200 at 100'
    • 1280x1024 at 150'
  • Keyboard and mouse emulation allows plug and play operation
  • Compatible with Rose switches such as ServeView, UltraView, and UltraMatrix
  • Connector types use standard VGA (HD15) and PS/2 (Minidin6)
  • Compatible with Windows, NT, OS/2, UNIX, Linux, and other operating systems
  • Fully automatic KVM sharing on first-come first-serve basis using the dual version models
  The CrystalView system consists of two Units. The Local Unit connects to your CPU using a CPU adapter cable. The Remote Unit connects directly to the keyboard, video monitor and mouse cables of a KVM station. The Local and Remote Units are connected together with up to 150 feet of industry standard CAT5 cable.

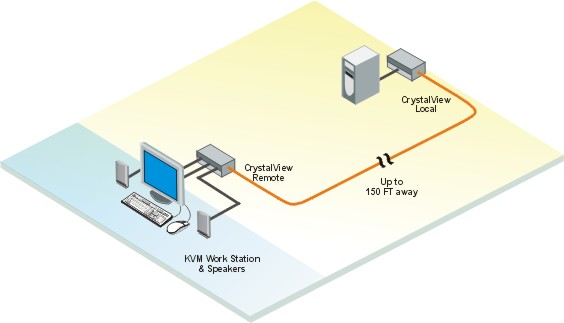

typical application


Product Part # Description
CRK-M1P-2 CrystalView Mini, PS/2 KVM Extender Kit (Local, Remote, Power Supply)
CRK-M2P-2 CrystalView Mini, PS/2 Dual KVM Extender Kit (Local, Remote, Power Supply)
CRK-M1P/AUD CrystalView Mini, PS/2 KVM Extender Kit with Audio & Serial (Local, Remote, Power Supply)
CRK-M2P/AUD CrystalView Mini, PS/2 Dual KVM Extender Kit with Audio & Serial (Local, Remote, Power Supply)

Cable Part # Description
CAB-ZX0606Cnnn UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CX0606Cnnn UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CXVSMMnnn UltraCable Hi-Res, Switch to Switch, DB25M to DB25M
CAB-D9MFnnn Cable, Serial, DB9M to DB9F
CAB-SPMMnnn Cable, Stereo Audio, Mini-Phone M-M (3.5mm)
CAB-08UTPnnn Cable, UTP CAT5, RJ45MM
