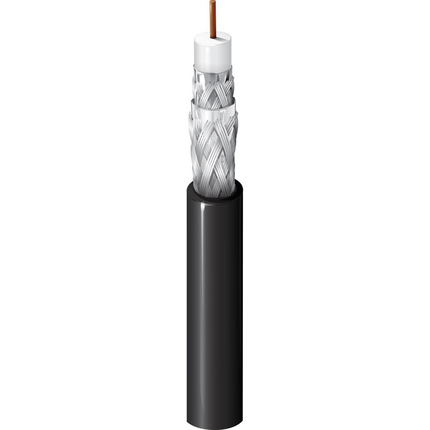

| Suitable Applications: | Mini RG59 tri shield coaxial cable used where immuntiy to conducted disturbances is required, but space is limited; Coaxial cable used in cable broadBand communication networks designed according European Standard EN 50117-1; Operating frequencies between 5 and 3000 MHz |
| RG Type: | Mini 59 |
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 23 AWG | Solid | 0.58 mm | BC – Bare Copper |
| Material | Nom. Insulation Diameter |
|---|---|
| PE – Polyethylene (Foam) | 2.59 mm (0.102 in) |
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Tape | Tri-Laminate (Alum+Poly+Alum) | 100% |
| 2 | Braid | Tinned Copper (TC) | 95% |
| 3 | Tape | Tri-Laminate (Alum+Poly+Alum) | 100% |
| 4 | Braid | Tinned Copper (TC) | 90% |
| Material | Nom. Diameter |
|---|---|
| PVC – Polyvinyl Chloride | 4.7 mm |
| Regularity of Impedance: | Min. 40 dB |
| Frequency | Min. Return Loss |
|---|---|
| 5 – 30 MHz | 23 dB |
| 30 – 850 MHz | 23 dB |
| 850 – 3000 MHz | 21 dB |
| Table Notes: | In each frequency band, 3 peak values up to 4 dB lower are allowed |
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 1.7 dB/100m |
| 3.6 MHz | 2.6 dB/100m |
| 10 MHz | 3.9 dB/100m |
| 71.5 MHz | 10 dB/100m |
| 135 MHz | 12.5 dB/100m |
| 270 MHz | 17.7 dB/100m |
| 540 MHz | 25.3 dB/100m |
| 720 MHz | 31.1 dB/100m |
| 750 MHz | 31.5 dB/100m |
| 1000 MHz | 34.4 dB/100m |
| 1500 MHz | 42.7 dB/100m |
| 2000 MHz | 52 dB/100m |
| 2250 MHz | 52.5 dB/100m |
| 3000 MHz | 60.7 dB/100m |
| Table Notes: | Max. attenuation 10% higher |
| Max. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield |
Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 66 Ohm/km (20 Ohm/1000ft) | 6.5 Ohm/km (2.0 Ohm/1000ft) | 53 pF/m (16 pF/ft) | 75 Ohm | 83% |
| Frequency | Max. Transfer Impedance |
|---|---|
| 5-30 MHz | Max. 0.9 mOhm/m |
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 – 1000 MHz | 110 dB |
| 1000 – 2000 MHz | 95 dB |
| 2000 – 3000 MHz | 85 dB |
| Screening Class: | A++ |
| Operating | Installation | Storage |
|---|---|---|
| -40°C To +70°C | -5°C To +50°C | -40°C To +70°C |
| Stationary Min. |
|---|
| 47 mm (1.9 in) |
| Max. Pull Tension: | 160 N (36 lbf) |
| Bulk Cable Weight: | 42 kg/km |
| Environmental Suitability: | Indoor – Euroclass Eca |
| Flammability / Reaction to Fire: | IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| CENELEC Compliance: | EN 50117-1 |
| UK Regulation Compliance: | UKCA Mark |
| Update and Revision: | Revision Number: 0.154 Revision Date: 03-30-2023 |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| YE01804.10500 | Black | Reel | 500 m | 8719605113481 |
| YE01804.06500 | Blue | Reel | 500 m | 8719605113443 |
| YE01804.00500 | Green | Reel | 500 m | 8719605113399 |
| YE01804.03500 | Orange | Reel | 500 m | 8719605113429 |
| YE01804.02500 | Red | Reel | 500 m | 8719605113412 |
| YE01804.09500 | White | Reel | 500 m | 8719605113474 |
| YE01804.04500 | Yellow | Reel | 500 m | 8719605113436 |
