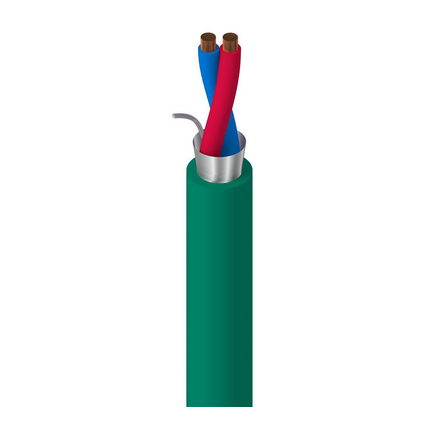

YE00905 – KNX, 1PR 0.8mm Sol BC, PE ins, OS, LSNH Jkt, Eca

Call for Price

parts-139

Test

$354.90

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: KNX, EIB cable for building management

Physical Characteristics (Overall)

Conductor
Stranding Material Cross Section Nominal Diameter No. of Conductors No. of Pairs
Solid BC – Bare Copper 0.5 mm² 0.8 mm 2 1
Conductor Count: 2
Insulation
Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
PE – Polyethylene 1.6 mm 0.05 mm 0.4 mm
Color Chart
Number Color
Pair 1 Red & Blue
Outer Shield
Type Material Material Trade Name Coverage [%] Thickness of Foil Drainwire Material Drainwire Diameter
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% 9 µm TC – Tinned Copper 0.4 mm
Outer Jacket
Material Nominal Diameter Diameter – Tolerance Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) 6.0 mm 0.3 mm 1.4 mm

Construction and Dimensions

Cabling
Description
1 pair covered with a polyester foil

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
37.5 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
50 pF/m
Voltage
Voltage Rating [V]
300 V
Electrical Characteristics Notes: Testvoltage 4 kV, 1 min

Temperature Range

Storage Temperature Range: -30°C to +70°C
Operating Temperature Range: -20°C to +70°C

Mechanical Characteristics

Min. Bend Radius During Installation: 31.5 mm
Min Setting Radius: 63 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor – Euroclass Eca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 – Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
YE00905.00100 Green Reel 100 m 8719605112767
YE00905 005500M Green Reel 500 m 6938935085301
YE00905.001000 Green Reel 1,000 m 8719605112774
YE00905=001000 Green Reel 1,000 m 8719605161352
YE00905=K01000 Green Reel 1,000 m 8719605161338
YE00905 0051000M Green Reel 1,000 m 6938935086353
YE00905.00500 Green, Dark Reel 500 m 8719605112781
YE00905=00500 Green, Dark Reel 500 m 8719605161369
YE00905=K0500 Green, Dark Reel 500 m 8719605161345

History

Update and Revision: Revision Number: 0.192 Revision Date: 02-15-2024
