YE00193 – 1 PAIR AES/EBU, 26AWG, ISTP, LSZH, STAGE

Call for Price

parts-139

Test

$354.90

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Digital multi-modulation cable used in professional studiotechnics; For analogue and digital transmission in instruments for frequency modulation

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Construction n x D
26 18×38 TC – Tinned Copper 18×0.10 mm
Conductor Count: 2
Total Number of Pairs: 1
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE – Polyethylene 1.13 mm 0.03 mm
Color Chart
Number Color
Pair 1 White & Blue
Outer Shield
Type Material Min. Coverage [%]
Tape Polyester
Spiral Serve / Screen Tinned Copper (TC) 90%
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
LSZH – Low Smoke Zero Halogen (Flame Retardant) 2.90 mm 0.10 mm

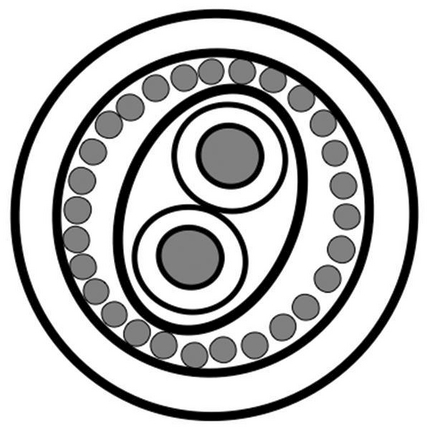

Construction and Dimensions

Cabling
Description
1 pair

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Nominal Outer Shield DCR
130 Ohm/km 40.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Shield
56 pF/m 220 pF/m
Min Insulation Resistance: 2000 MOhm*km
Inductance
Nominal Pair Inductance
0.80 µH/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance Nominal Characteristic Tolerance
0.1 – 6 110 Ohm +/- 10 Ohm
6 – 24 110 Ohm 20 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
2 MHz 3.1 dB/100m
4 MHz 6.2 dB/100m
5 MHz 7.3 dB/100m
6 MHz 8.2 dB/100m
12 MHz 13.1 dB/100m
24 MHz 21.1 dB/100m
Delay
Nominal Velocity of Propagation (VP) [%]
60%

Temperature Range

Other Temp Range: -30 to +80 °C

Mechanical Characteristics

Max. Pull Tension: 50 N
Min. Bend Radius During Installation: 29 mm
Min. Bend Radius During Operation: 43.5 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor – Euroclass Eca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
YE00193.00500 Gray Reel 500 m 8719605111906

History

Update and Revision: Revision Number: 0.131 Revision Date: 02-15-2024
