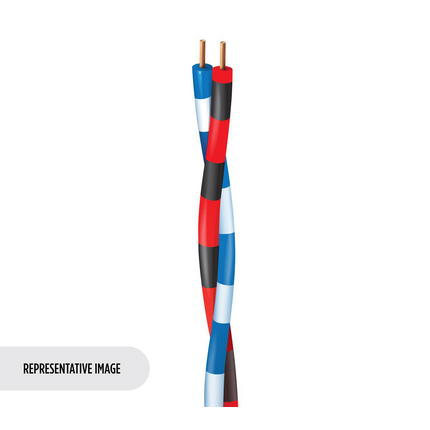

XCZ1 - Category 3 Cross Connect Cable, 1 Pair, U/UTP, PVC Jacket

XCZ1 – Category 3 Cross Connect Cable, 1 Pair, U/UTP, PVC Jacket

Call for Price

Compare
SKU: XCZ1 Categories: , , ,

Description

Product Overview

Suitable Applications: Cross-Connect, Interconnect

Construction Details

Conductor
Size Stranding Material No. of Pairs
24 AWG Solid BC – Bare Copper 1
Insulation
Material
PVC – Polyvinyl Chloride
Table Notes: Overall Nominal Diameter: 0.072 in

Mechanical Characteristics

Temperature
UL Temperature
60°C
Bend Radius
Stationary Min. Installation Min.
1 in (25 mm) 1 in (25 mm)
Max. Pull Tension: 15 lbs (6.8 kg)
Bulk Cable Weight: 5 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire: UL 1685 (UL Loading)
NEC / UL Compliance: Cross-Connect
Data Category: Category 3
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.362 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC
XCZ1 D921000 Blue/Red and Red/Blue Reel 1,000 ft 612825060888
XCZ1 D921000 Blue/Red and Red/Blue Reel 1,000 ft 612825060888
XCZ1 D87500 Blue/White and White/Blue Reel 500 ft 612825060895
XCZ1 D87500 Blue/White and White/Blue Reel 500 ft 612825060895
XCZ1 E031000 Blue/Yellow and Yellow/Blue Reel 1,000 ft 612825060871
XCZ1 E031000 Blue/Yellow and Yellow/Blue Reel 1,000 ft 612825060871
XCZ1 E031000B Blue/Yellow and Yellow/Blue Reel 1,000 ft
XCZ1 E031000B Blue/Yellow and Yellow/Blue Reel 1,000 ft
