Description

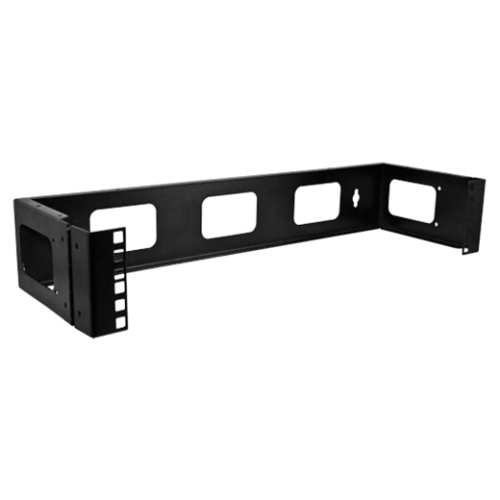

We offer these 2U hinged wall mount brackets which provide a cost-effective solution for mounting patch panels or other 19 in. networking equipment to a wall. The open design allows for easy ambient cooling, while the universal hinge design can be mounted on the left or right side and allows equipment to swing out 160° for maximum accessibility.
Features & Benefits
- 16 in. spacing of keyholes for easy mounting to wall studs
- Through the wall cable access via large cut out holes
- Folded edge, U-shaped construction for greater strength and stability
- Universal left or right hinge mounting
- 160° swing out for easy access to back of equipment
- 16 gauge cold rolled steel with black powder coat finish
- Standard EIA 19 in. width for compatibility with any EIA compliant equipment
- 6 in. depth provides greater flexibility with equipment and cabling
- Includes 10 pcs cage nuts and 10-32 screws (wall mounting hardware not included)
- 2U height (3.625 in.)
- RoHS Compliant
Additional information
| Weight | 5.1 lbs |
|---|
