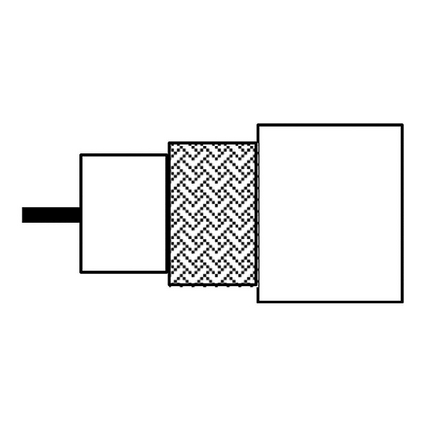

URM76 – URM76 – Uni-Radio Coax, 50 Ohm, M76 Type, 20 AWG Stranded BC, 91% BC Braid, PVC Jkt

Call for Price

parts-139

Test

$354.90

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Construction Details

Series Type: UR Series
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 20 AWG Stranded 0.96 mm TC – Tinned Copper
Insulation
Element Material Nom. Insulation Diameter
Insulated Conductor PE – Polyethylene 2.95 mm (0.116 in)
Outer Shield
Outer Shield Type Material Coverage
Braid Bare Copper (BC) 91%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 5 mm
Table Notes: According to EN 50290-2-20

Electrical Characteristics

Regularity of Impedance: Min. 40 dB
Return Loss (RL)
Frequency Min. Return Loss
5 – 30 MHz 20 dB
30 – 470 MHz 20 dB
470 – 1000 MHz 18 dB
Table Notes: In each frequency band, 3 peak values up to 4 dB lower are allowed
Attenuation
Frequency Nom. Attenuation
100 MHz 15.5 dB/100m
200 MHz 22.2 dB/100m
600 MHz 39.8 dB/100m
1000 MHz 52.7 dB/100m
Electricals
Max. Conductor DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
31.8 Ohm/km (9.69 Ohm/1000ft) 98 pF/m (30 pF/ft) 50 Ohm 66%
Voltage
Voltage Rating
4000 V DC / 2000 V RMS

Mechanical Characteristics

Temperature
Operating Installation Storage
-40°C To +70°C -5°C To +50°C -40°C To +70°C
Bend Radius
Stationary Min.
25 mm (0.98 in)

Standards and Compliance

Environmental Suitability: Indoor – Euroclass Eca
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
CENELEC Compliance: EN 50289
European Directive Compliance: EU CE Mark
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.200 Revision Date: 12-16-2022

Part Numbers

Variants
Item # Color Putup Type Length EAN
URM76.01100 Black Reel 100 m 8719605111029
URM76.00500 Black Reel 500 m 8719605111012
