Description

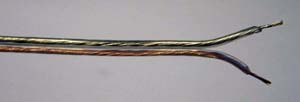

Type SPT-3 Lamp Cord
Conductor:
Annealed stranded bare copper per UL 62
Insulation:
PVC per UL 62
Colors Available: Any
(UL/CSA) SPT-3
RoHS Compliant
Voltage Rating:
300v
Temperature Rating:
60ºC
Features:
Resists: Oils, Water, Acids, Alkalies, Ozone
Applications:
For use in household appliances including clocks, radios, lamps, and fans
| Part Number | AWG | # of Cond. | Stranding | Nom. Weight | Insul. Thickness (in) | Nom. OD (in) |
|---|---|---|---|---|---|---|
| SW-3000 | 14 | 2 | 41/34 | 88 LBS/M’ | 0.08 | 0.235 X 0.420 |
| SW-3001 | 12 | 2 | 65/34 | 110 LBS/M’ | 0.095 | 0.285 X 0.490 |
