Description

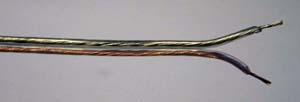

Type SPT-1 Lamp Cord
Conductor:
Annealed stranded bare copper per UL 62
Insulation:
PVC per UL 62
Colors Available: Any
(UL/CSA) SPT-1
RoHS Compliant
Voltage Rating:
300v
Temperature Rating:
105ºC
Features:
Resists: Oils, Water, Acids, Alkalies, Ozone
Applications:
For use in household appliances including clocks, radios, lamps, and fans
| Part Number | AWG | # of Cond. | Stranding | Nom. Weight | Insul. Thickness (in) | Nom. OD (in) |
|---|---|---|---|---|---|---|
| SW-1000 | 18 | 2 | 41/34 | 21 LBS/M’ | 0.023 | .105 x .198 |
| SP1-5000 | 18 | 2 | 41/34 | 22 LBS/M’ | 0.03 | .107 x .210 |
