Product Overview
| Product Category: |
Fiber Multi-Loose Tube Cable |
| Suitable Applications: |
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/ Outdoor & Wet Locations, Rodent Proof, UV Resistant |
Fiber Specifications
| Fiber Core Diameter: |
8.2/125 µm |
| Fiber Color Coding: |
TIA-598-D |

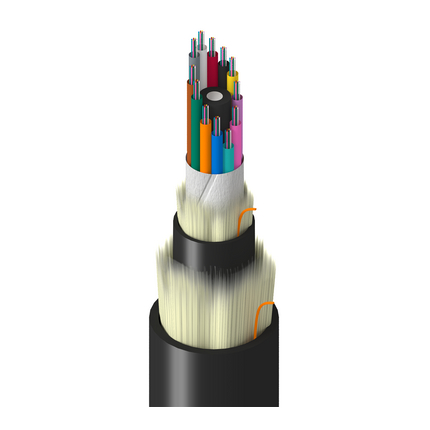

Cable Construction
| Number of Active Subunits: |
12 |
| Subunit Waterblocking: |
Gel Free |
| Subunit Diameter: |
0.098 in (2.5 mm) |
| Central Strength Member: |
Upjacketed GRP |
Inner Jacket Specifications
| Strength Member: |
Fiberglass Yarns |
| Material: |
LSZH – Low Smoke Zero Halogen (Flame Retardant) |
| Nom. Diameter: |
0.546 in (13.9 mm) |
Outer Jacket Specifications
| Strength Member: |
Fiberglass Yarns |
| Jacket Material: |
LSZH – Low Smoke Zero Halogen (Flame Retardant) |
| Nom. Diameter: |
0.746 in (18.9 mm) |
| Wavelength |
1310 nm |
1550 nm |
| Max. Attenuation |
0.35 |
0.25 |
| Mode Field Diameter |
9.2 µm |
10.4 µm |
| 1 Gigabit Ethernet Performance |
5000 m |
|
| 10 Gigabit Ethernet Performance |
10000 m |
40000 m |
Mechanical Characteristics
| Min. Bend Radius During Installation: |
15x Cable OD |
| Min. Bend Radius During Operation: |
10x Cable OD |
| Max. Tensile Strength During Installation: |
2670 N (600 lbf) |
| Max. Tensile Strength During Operation: |
800 N (180 lbf) |
| Crush Resistance: |
220 N/cm |
| Bulk Cable Weight: |
347 lbs/kft (516 kg/km) |
Temperature Range
| Installation Temperature Range: |
-10°C to +60°C |
| Operating Temperature Range: |
-40°C to +70°C |
| Storage Temperature Range: |
-40°C to +70°C |
Standards and Compliance
| Environmental Suitability: |
Indoor/Outdoor, Sunlight Resistance, Burial |
| Flammability / Reaction to Fire: |
UL 1685 FT4 Loading, Limited Smoke, FT4 |
| NEC / UL Compliance: |
OFNG-ST1 |
| ICEA Compliance: |
S-104-696 |
History
| Update and Revision: |
Revision Number: 0.9 Revision Date: 11-14-2022 |
