Description

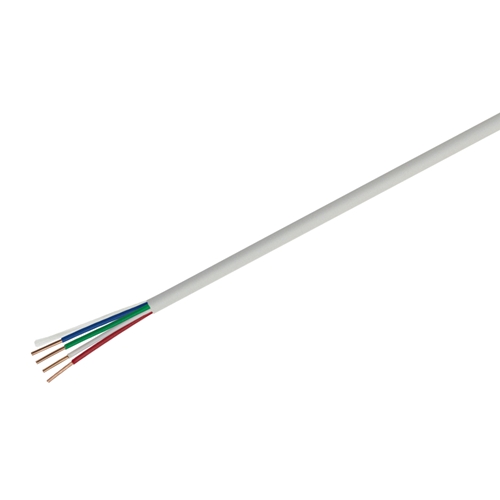

Vericom 18 AWG 4 conductor solid CL2R rated thermostat cable is composed of 4 wires (Red, White, Green, Blue) inside an In-Wall Riser rated jacket. This thermostat cable is rated for in-wall installation, supports certain low-voltage applications, and is ideal for class 2 remote-control, signaling, and power-limited circuits. Our thermostat cables are CMR and CL2R and meet UL 1685 Vertical Tray, which are perfect for commercial or residential installation in vertical floor-to-floor runs, where the length exceeds one story.
Features & Benefits
- CL2R rated jacket for in-wall residential or commercial installations in vertical floor-to-floor runs, where the length exceeds one story
- Voltage rated up to 150 Volts
- Temperature range: -20°C to 60°C
- UL Listed and RoHS Compliant to ensure safety requirements are met
- Available in White in either 1,000 ft., 500 ft. or 250 ft. spools
- Spool packaging to ease installation and storage
- Also Available in Brown in 20 AWG 4 Conductor, 500 ft. Spool (Item # HT204-02558)
Standards Compliance
- UL 1685 Vertical Tray and UL 1666
- UL Standard 13. Power Limited Circuit Cable
- UL Listed Type CL2R and CMR
- NEC Article 725
- RoHS compliant
Additional information
| Weight | 14.2 lbs |
|---|
