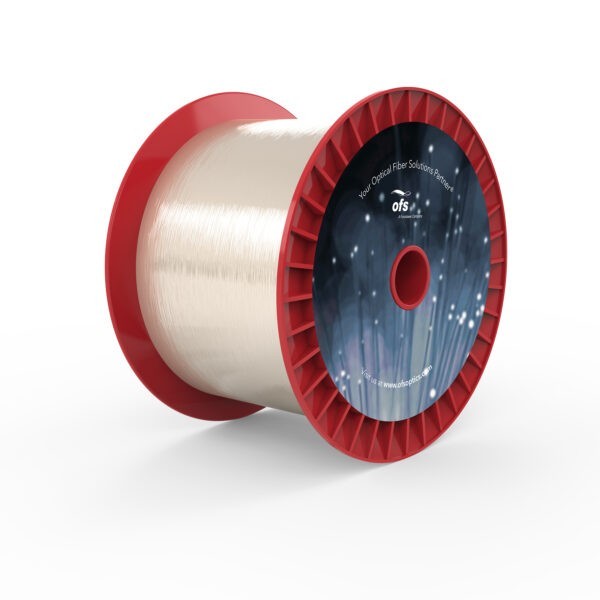

TCU-ME050J2 GEO
Description
TCU-ME050J2 GEO
| Numerical Aperture | 0.2 |
|---|---|
| Attenuation | @ 1300 nm, ≤ 2, @ 850 nm, ≤ 4 (dB/km) |
| Core Diameter | 50 ± 3 (µm) |
| Core/Clad Offset | ≤ 3 (µm) |
| Operating Temperature | -65 to +300 (ºC) |
| Short-Term Bend Radius | ≥ 8 (mm) |
| Long-Term Bend Radius | ≥ 10 (mm) |
| Proof Test Level | 200 (kpsi) |
| Proof Test Level | 0.689 (GPa) |
| Typical Applications | Datacom in Harsh Environments, Distributed Temperature Sensing, High-Temperature DTS, Local Area Networks with Elevated Temperature Requirements |
| Options | Additional Coatings, Cabling, Connectorization, Metalization, Other Upgrades |
| Type | Multimode Graded-Index |
| Cladding Diameter | 125 ± 2 (µm) |
| Coating Diameter | 155 ± 5 (µm) |
| Coating Material | Carbon/PYROCOAT® |
| Short-Term Temperature Excursions | Up to 400 (ºC) |
| Clad Non-Circularity | ≤ 2.0% |
| Core Non-Circularity | ≤ 5% |
| Hermetic Carbon Layer | 300 to 400 (Å) |
| Note | OFS polyimide optical fibers are known to operate in environments up to 300 °C. Performance is application dependent. Contact our Technical Sales department to discuss your specific application requirements. 1-860-678-6636 |
