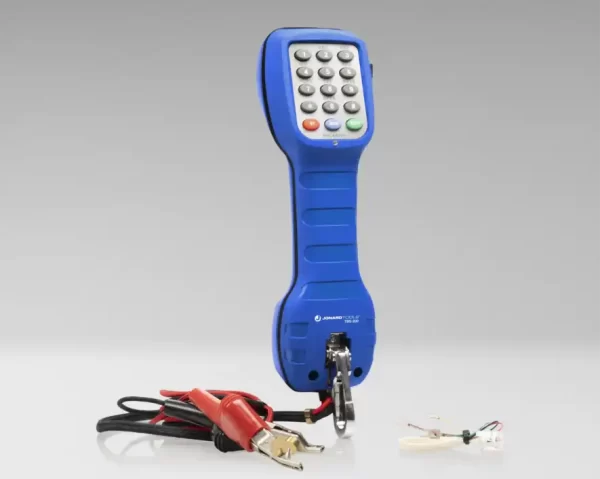

(Part Number: TBS-200) – Telephone Butt Set with High Impedance Monitoring, Analog – Low Voltage – Test Equipment – Testing Equipment – Jonard

Call for Price

Download Spec Sheet

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description
Brand

Description

Designed to facilitate the installation, service, and maintenance of analog telephone lines, this telephone butt set has all the essential functions for testing telephone lines such as detecting dial tone, making and receiving calls, high impedance monitoring, and tone and pulse modes. This telephone test set also features the following:

Talk, Ring, and Monitor test functions, which can be switched inside of the handgrip
Sends signals via dial tone (DTMF) or dial pulse
High impedance monitoring will not disturb data, conversations, or signals
Bright LED indicates reversed polarity clearly
Last number redial up to 31 digits
Voltage protection against excessive voltage, transient ringer signals, and direct connection to most batteries and power supplies
Angled Bed-of-Nails (ABN) Clips clamp connections securely

Specifications

Loop Limit	4K ohms max. at 48VDC(5K meter – 26Ga non loaded) nominal 15mA minimum loop current
DC Resistor	150 ohms Typical at 80mA current
Monitor lmpedance, Ring Position	Low impedance – 600 ohms Typical at 1 KHz
Monitor lmpedance, Monitor Position	High impedance – 100K ohms Typical at 1 KHz
Rotary Dial Output, Pulse Rate	10 +/- 0.5 pulses/sec
Rotary Dial Output, Percent Break	60% +/- 2%
Rotary Dial Output, Interdigital Pause	8.5ms Typical
Rotary Dial Output, Leakage During Break	> 50k ohms
DTMF Output, Tone Frequency Error	+/- 1.5%
DTMF Output, Level of Tone Pair	+2 dBm max. , -8 dBm min.
DTMF Output, Low vs High Tone Difference	-4 dBm max
Dimensions	9 in x 2 in x 2 in (22.86 cm x 5.08 cm x 5.08 cm)
Weight	0.82 lb (372.28 g)
UPC #	810132436499

Brand

Jonard
