SPE401 - DataTuff Ind SPE 40m 1Gbps 100 Ohm 22AWG SFTP LSZH

SPE401 – DataTuff Ind SPE 40m 1Gbps 100 Ohm 22AWG SFTP LSZH

Call for Price

Compare
SKU: SPE401 Categories: , , ,

Description

Product Overview

Suitable Applications: Noisy environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

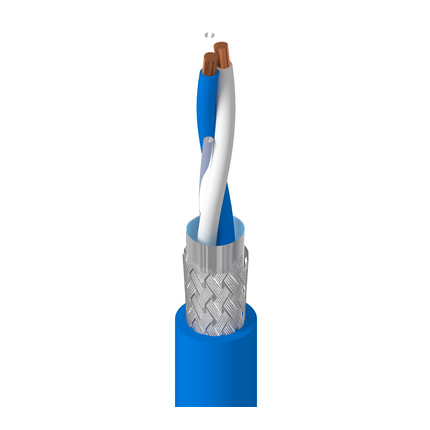

Construction Details

Conductor
Size Stranding Material No. of Pairs
22 AWG Solid BC – Bare Copper 1
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.069 in (1.8 mm) White & Blue
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 80%
Outer Jacket
Material Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 0.201 in (5.11 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
54 Ohm/km 1,200 pF/km
Delay
Frequency Max. Delay Max. Delay Skew
100 MHz 538 ns/100m 25 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. RL (Return Loss) [dB] Min. TCL [dB] Min. ELTCTL [dB] Max. Surface Transfer Impedance [mOhm/m] Min. Coupling Attenuation [dB]
1 2.1 dB/100m 20 40 40 50
4 3.7 dB/100m 23.3 40 28 75.9
8 5.2 dB/100m 24.5 36.5 21.9 93.5
10 5.8 dB/100m 25 35.0 20.0 100
16 7.3 dB/100m 25 31.9 15.9 134.5
20 8.2 dB/100m 25 30.5 14 154.9
25 9.2 dB/100m 24.3 29 12 178.3
30 10.1 dB/100m 23.8 27.8 10.5 200 85
60 14.3 dB/100m 21.7 23.3 5 85
100 18.5 dB/100m 20 5 85
200 26.5 dB/100m 18.0 15.5 5 79
250 29.7 dB/100m 17.3 14 5 77
300 32.7 dB/100m 16.8 12.8 5 75
350 35.4 dB/100m 16.3 11.8 5 74
400 38.0 dB/100m 15.9 11 5 73
450 40.4 dB/100m 15.5 10.2 5 72
500 42.8 dB/100m 15.2 9.5 5 71
550 45.0 dB/100m 14.9 8.9 5 70
600 47.1 dB/100m 14.7 8.3 5 69
Voltage
UL Voltage Rating Voltage Rating
300 V (UL AWM 21307) 300 V (IEC 61156-11)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -30°C To +80°C
Bend Radius
Installation Min.
2 in (51 mm)
Bulk Cable Weight: 10.9 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Non-Halogenated
Flammability / Reaction to Fire: FT2
AWM Compliance: AWM 21307
IEEE Compliance: IEEE 802.3bp
ISO/IEC Compliance: IEC 61156-11
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system.

History

Update and Revision: Revision Number: 0.45 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length
SPE401 0065000
SPE401 0105000
SPE401 0101000 Black Reel 1,000 ft
SPE401 0061000 Blue, Light Reel 1,000 ft
