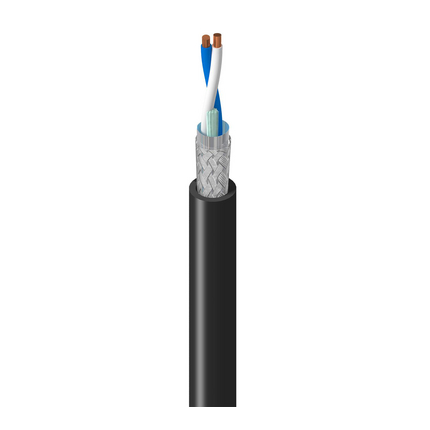

SPE101 - Datatuff Ind SPE 10Mbps 18AWG SF/UTP PVC

SPE101 – Datatuff Ind SPE 10Mbps 18AWG SF/UTP PVC

Call for Price

Compare
SKU: SPE101 Categories: , , ,

Description

Product Overview

Suitable Applications: data communications, cameras, PLCs, switches, outdoor, indoor etc.

Construction Details

Conductor
Size Stranding Material No. of Pairs
18 AWG Solid TC – Tinned Copper 1
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.098 in (2.5 mm) White & Blue
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 90%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.311 in (7.90 mm)
Overall Cable Diameter (Nominal): .311 in (7.90 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance
23 Ohm/km 56 pF/m (17 pF/ft) 330 pF/100m
Delay
Frequency Max. Delay Nom. Velocity of Prop.
100 MHz 450 ns/100m 76%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. RL (Return Loss) [dB] Min. PSANEXT [dB] Min. Coupling Attenuation [dB] Nom. Characteristic Impedance [Ohm]
0.1 1.0 dB/100m 11.5 67 50 100
0.5 1.2 dB/100m 15 64.7 50 100
0.772 1.3 dB/100m 15 61.5 50 100
1 1.4 dB/100m 15 61.4 50 100
2 1.9 dB/100m 15 54.5 50 100
4 2.6 dB/100m 15 49.4 50 100
8 3.6 dB/100m 15 44.3 50 100
10 5.9 dB/100m 15 42.6 50 100
16 5.1 dB/100m 15 39.1 50 100
20 5.7 dB/100m 15 37.5 50 100
Voltage
UL Voltage Rating
300 V (UL 13 PLTC)

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C -30°C To +75°C
Bend Radius
Installation Min.
2.4 in (61 mm)
Max. Pull Tension: 25 lbs (11 kg)
Bulk Cable Weight: 56 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire: UL 1685 UL Loading
NEC / UL Compliance: CM, PLTC
IEEE Compliance: IEEE 802.3cg
TIA/EIA Compliance: ANSI/TIA-568.5
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2022-04-27
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system.

History

Update and Revision: Revision Number: 0.43 Revision Date: 02-15-2024

Part Numbers

Variants
Item #
SPE101 0061000
SPE101 0101000
