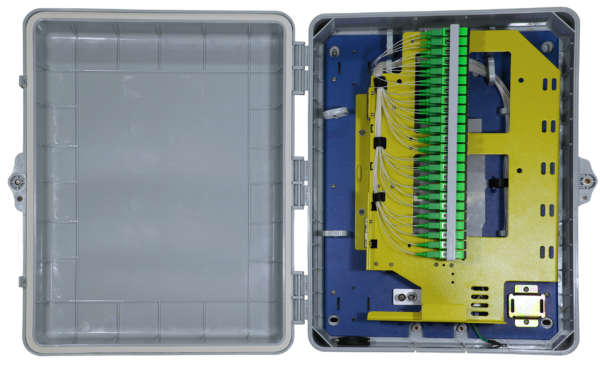

SlimBox® 48-Fiber Indoor/Outdoor Enclosure
Call for Price
Item Number
SlimBox® 48-Fiber Indoor/Outdoor Enclosure
SlimBox® 48-Fiber Indoor/Outdoor Enclosure
Description
SlimBox® 48-Fiber Indoor/Outdoor Enclosure
Applications
Indoor/Outdoor application in wall mount or pole installation
Features and Benefits
- Use of internal adapters allows the use of pre-terminated drop cable
- Supports termination, splicing, and storage functions
- Compact design
- Loop-through capability
Description
Item Number
SlimBox® 48-Fiber Indoor/Outdoor Enclosure
SlimBox® 48-Fiber Indoor/Outdoor Enclosure
Description
SlimBox® 48-Fiber Indoor/Outdoor Enclosure
Applications
Indoor/Outdoor application in wall mount or pole installation
Features and Benefits
- Use of internal adapters allows the use of pre-terminated drop cable
- Supports termination, splicing, and storage functions
- Compact design
- Loop-through capability
| Operating Temperature | -40 to +60 (ºC) |
|---|---|
| Product Dimensions (H x W x D) | 320 x 420 x 130 (mm) |
| Color | Light Grey |
| Capacity | Up to 48 fusion splices (stackable internal trays), Up to 48 SC footprint adapters |
| Protection Level | IP 55 |
| Loose Tube Storage | Yes – Internal |
| Adapter Type | SC (standard) or LC |
| Drop Cable Dimensions | 3 mm or 4.8 mm round types |
| Body Material | Plastic (PC + ABS) |
| Sealing System for Drop Cables | Mechanical |
