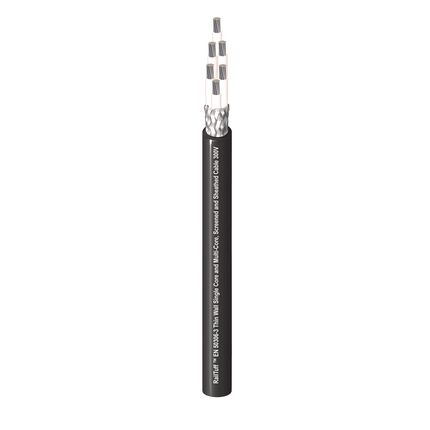

RTB6C0.75 – RailTuff™ Thin wall cable 300V 6 C 0.75 mm² TC, XLPO Ins, TCBS, XLPO Outer Jkt

Call for Price

parts-139

Test

$354.90

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc

Construction Details

Conductor
Size Material
0.75 mm² TC – Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
XLP, XLPO, XLPE 1.62 mm (0.0638 in) White#1, White#2, White#3, White#4, White#5, White#6
Outer Shield
Shield Type Material
Braid Tinned Copper (TC)
Outer Jacket
Material Nom. Diameter
XLP, XLPO, XLPE 6.35 mm (0.250 in)
Overall Cable Diameter (Nominal): 6.35 ± 0.25 mm

Mechanical Characteristics

Temperature
Operating
-40°C to +90°C
Bend Radius
Stationary Min. Installation Min.
64 mm (2.5 in) 64 mm (2.5 in)
Bulk Cable Weight: 83.3 kg/km (56.0 lbs/1000ft)

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Non-Halogenated
Flammability / Reaction to Fire: IEC 60332-1-2, IEC 60332-2-25, EN 50305
European Halogen Free Standards: IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 10 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3

Product Notes

Notes: EMEA PN: RTB6C075;

History

Update and Revision: Revision Number: 0.30 Revision Date: 11-27-2023
