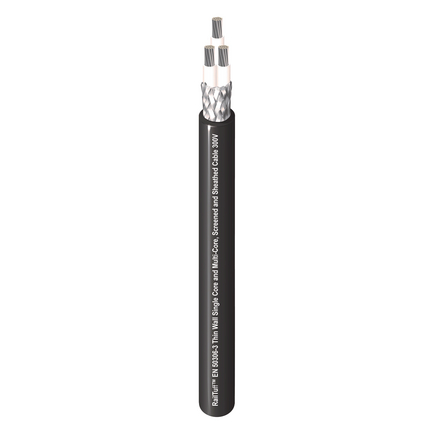

RTB3C1.5 – RailTuff Thin wall cable 300V 3 C 1.5 mm² TC, XLPO Ins, TCBS, XLPO Outer Jkt
Call for Price
CompareDescription
Product Overview
| Suitable Applications: | Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc |
Construction Details
Conductor
| Size | Material |
|---|---|
| 1.5 mm² | TC – Tinned Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| XLP, XLPO, XLPE | 2.25 mm (0.0886 in) | White#1, White#2, White#3 |
Outer Shield
| Shield Type | Material |
|---|---|
| Braid | Tinned Copper (TC) |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| XLP, XLPO, XLPE | 6.15 mm (0.242 in) |
| Overall Cable Diameter (Nominal): | 6.15 ± 0.25 mm |
Mechanical Characteristics
Temperature
| Operating |
|---|
| -40°C to +90°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 62 mm (2.4 in) | 62 mm (2.4 in) |
| Bulk Cable Weight: | 78.8 kg/km (53.0 lbs/1000ft) |
Standards and Compliance
| Environmental Suitability: | Indoor, Outdoor, Non-Halogenated |
| Flammability / Reaction to Fire: | IEC 60332-1-2, IEC 60332-2-25, EN 50305 |
| European Halogen Free Standards: | IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 10 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3 |
Product Notes
| Notes: | EMEA PN: RTB3C150; |
History
| Update and Revision: | Revision Number: 0.30 Revision Date: 11-27-2023 |
