(Part Number: RJ456A-SC) – Shielded RJ45 Connector with Crimp Tail for CAT6A Cable, Pack of 100 – Network/IT (Telecom) – Connectors & Connector Tools – Testing Equipment – Jonard

Call for Price

Download Spec Sheet

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

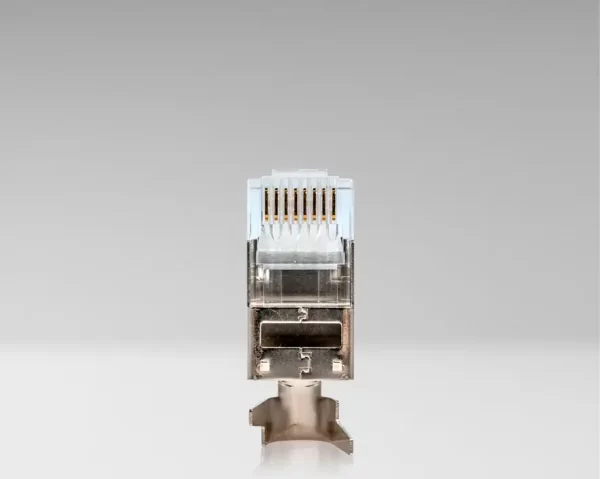

The Jonard Tools CAT6A RJ45 Pass-Through Connectors are used by network installers/technicians in order to terminate CAT6e, CAT6A, and CAT7A network cables with a pass-through crimper. They are used in households and businesses and are ideal for terminating a round network cable or even replacing an existing connector. These connectors feature the following:

  • Connectors are shielded with nickel-plated brass to reduce damage if the cable is accidently pulled
  • 50 μin gold plating on contact surfaces provides greater signal quality than the competition
  • Tripoint-type prongs allow you to use stranded or solid CAT6e, CAT6A, and CAT7 cables
  • Simplify twisted pair network cable termination by allowing the wires to pass through the connector
  • Advantage of the pass-through feature is that you do not have to measure and cut the wires before termination, which can lead to having poor connection and signal loss
  • Clear housing allows the operator to see the wire pairs easily

Specifications

Number of Connectors

100
Cable Type

CAT6e, CAT6A and CAT7
Cable Diameter

26 – 23 AWG (5 – 8 mm)
Connector Type

Three-prong RJ45
Plating Thickness

50 micro-inches
Housing Material

Polycarbonate, Nickel-plated Brass
Standards

ANSI/TIA-568-C.2, UL 1863, FCC Part 68 subpart F
Operating Temperature

-10°C to 60°C
Product Material Nickel
Weight 0.93 lb (420.404 g)
UPC # 810053351932

Brand

Jonard
