Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |

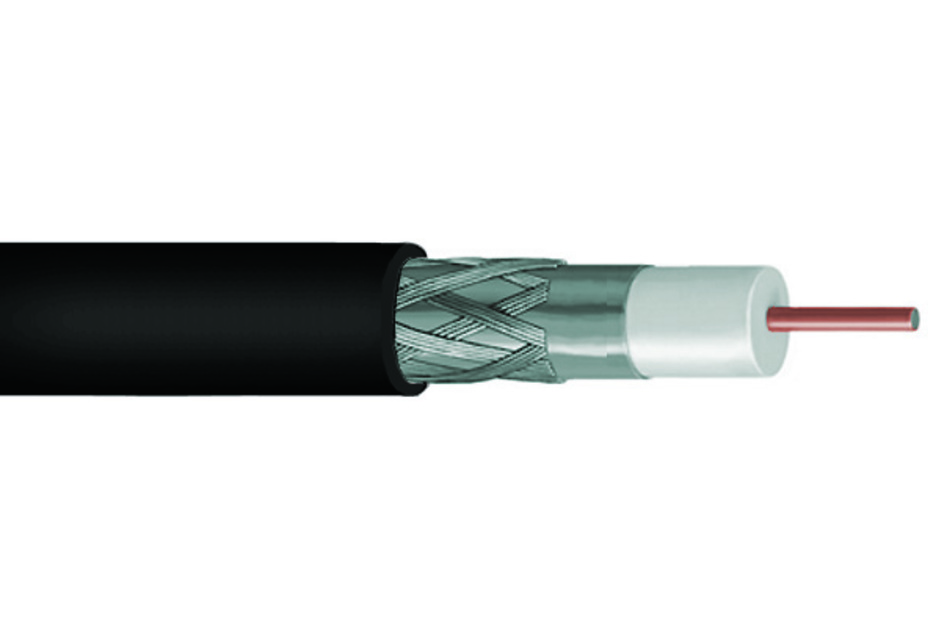

| Product Type | Coaxial video cable |
| Product Number | 2276V |
| Cable Type | Series 6 |
| Center Conductor Type | Solid |
| Construction Type | Non-armored |
| Jacket Color | Black |
| Cable Length | 304.8 m | 1000 ft |
| Diameter Over Center Conductor Tolerance | ±0.0004 in |
| Diameter Over Center Conductor, specific | 0.0403 in per 1 strand |
| Diameter Over Dielectric | 4.318 mm | 0.17 in |
| Diameter Over Jacket, nominal | 6.02 mm | 0.237 in |
| Diameter Over Jacket Tolerance | ±0.006 in |
| Diameter Over Shield (Braid) | 5.207 mm | 0.205 in |
| Jacket Thickness | 0.381 mm | 0.015 in |
| Jacket Thickness, minimum spot | 0.254 mm | 0.01 in |
| Center Conductor Gauge | 18 AWG |
| Shield (Braid) Gauge | 34 AWG |
| Capacitance | 50.853 pF/m | 15.5 pF/ft |
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| Conductor dc Resistance | 93.832 ohms/km | 28.6 ohms/kft |
| Dielectric Strength, conductor to shield | 2500 Vdc |
| Jacket Spark Test Voltage | 2500 Vac |
| Nominal Velocity of Propagation (NVP) | 84 % |
| Shield dc Resistance | 20.997 ohms/km | 6.4 ohms/kft |
| Structural Return Loss | 15 dB @ 1000–3000 MHz | 20 dB @ 5–1000 MHz |
| Structural Return Loss Test Method | 100% Swept Tested |
| Frequency | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
| 1.0 MHz | 1.250 | 0.380 |
| 10.0 MHz | 2.300 | 0.700 |
| 50.0 MHz | 4.850 | 1.480 |
| 100.0 MHz | 6.590 | 2.010 |
| 200.0 MHz | 9.380 | 2.860 |
| 400.0 MHz | 13.870 | 4.230 |
| 700.0 MHz | 19.550 | 5.960 |
| 900.0 MHz | 22.830 | 6.960 |
| 1000.0 MHz | 24.440 | 7.450 |
| 1200.0 MHz | 27.060 | 8.250 |
| 1450.0 MHz | 30.640 | 9.340 |
| 1800.0 MHz | 35.060 | 10.690 |
| 2200.0 MHz | 37.850 |
