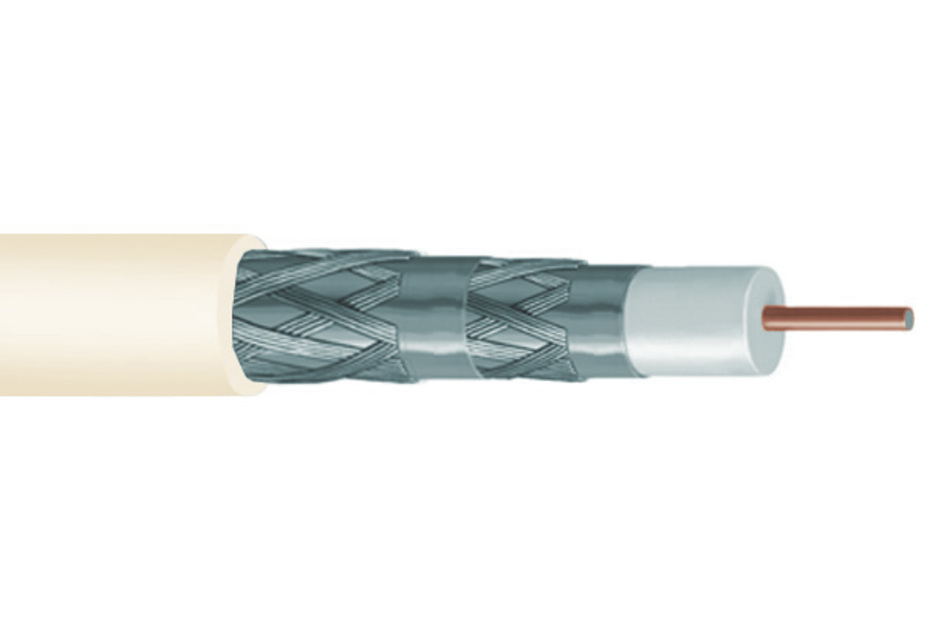

RG 11 Type Quad Shield Plenum Video Coaxial Cable – white jacket – 1000 ft (305 m) reel 4101204/10 | 2287V WTRL RG11 QD 1000 – CommScope

Call for Price

Download Spec Sheet

Test

$354.90

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description
Brand

Description

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope^®
Product Type	Coaxial video cable

General Specifications

Product Number	2287V
Cable Type	Series 11
Center Conductor Type	Solid
Construction Type	Non-armored
Jacket Color	White
Supported Application	Video

Dimensions

Cable Length	304.8 m \| 1000 ft
Diameter Over Center Conductor, specific	0.0641 in per 1 strand
Diameter Over Dielectric	7.061 mm \| 0.278 in
Diameter Over Inner Shield (Braid)	7.595 mm \| 0.299 in
Diameter Over Inner Shield (Tape)	7.214 mm \| 0.284 in
Diameter Over Jacket, nominal	9.042 mm \| 0.356 in
Diameter Over Jacket Tolerance	±0.008 in
Diameter Over Outer Shield (Braid)	8.204 mm \| 0.323 in
Jacket Thickness	0.432 mm \| 0.017 in
Jacket Thickness, minimum spot	0.305 mm \| 0.012 in
Center Conductor Gauge	14 AWG
Inner Shield (Braid) Gauge	36 AWG
Outer Shield (Braid) Gauge	36 AWG

Electrical Specifications

Capacitance	52.493 pF/m \| 16 pF/ft
Characteristic Impedance	75 ohm
Characteristic Impedance Tolerance	±3 ohm
Conductor dc Resistance	36.089 ohms/km \| 11 ohms/kft
Dielectric Strength, conductor to shield	4000 Vdc
Jacket Spark Test Voltage	2500 Vac
Nominal Velocity of Propagation (NVP)	86 %
Shield dc Resistance	5.577 ohms/km \| 1.7 ohms/kft
Structural Return Loss	15 dB @ 1000–3000 MHz \| 20 dB @ 5–1000 MHz
Structural Return Loss Test Method	100% Swept Tested

Attenuation

Frequency	Attenuation (dB/100 ft)
1.0 MHz	0.150
10.0 MHz	0.450
50.0 MHz	0.900
100.0 MHz	1.280
200.0 MHz	1.850
400.0 MHz	2.750
700.0 MHz	3.920
900.0 MHz	4.720
1000.0 MHz	5.040
1450.0 MHz	6.670
1800.0 MHz	7.710
2200.0 MHz	8.500
3000.0 MHz	9.880

Documentation & Downloads

Building Information Modeling (BIM) Objects

Revit BIM Models

Product Compliance Documentation

Global Trade Data

Statement of Compliance RoHS/REACH

Product Specification

4101204/10 Product specifications

Warranty

CommScope Limited Product Warranty

Building Information Modeling (BIM) Objects

Revit BIM Models

Product Compliance Documentation

Global Trade Data

Statement of Compliance RoHS/REACH

Product Specification

4101204/10 Product specifications

Warranty

CommScope Limited Product Warranty
