Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |

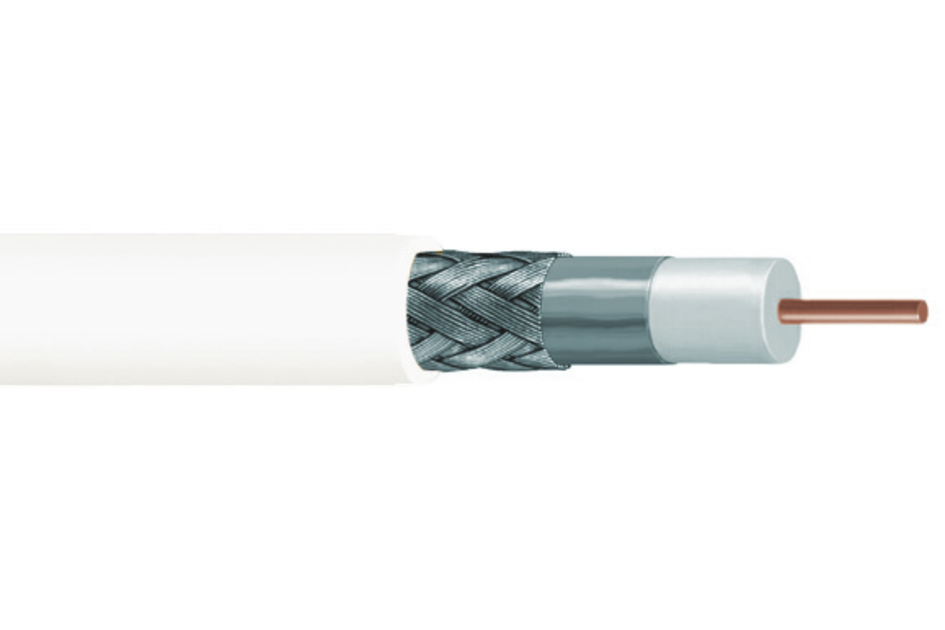

| Product Type | Coaxial video cable |
| Product Number | 2293V |
| Cable Type | Series 11 |
| Center Conductor Type | Solid |
| Construction Type | Non-armored |
| Jacket Color | White |
| Cable Length | 304.8 m | 1000 ft |
| Diameter Over Center Conductor, specific | 0.0641 in per 1 strand |
| Diameter Over Dielectric | 7.061 mm | 0.278 in |
| Diameter Over Jacket, nominal | 8.788 mm | 0.346 in |
| Diameter Over Jacket Tolerance | ±0.008 in |
| Diameter Over Shield (Braid) | 7.849 mm | 0.309 in |
| Diameter Over Shield (Tape) | 7.214 mm | 0.284 in |
| Jacket Thickness | 0.457 mm | 0.018 in |
| Jacket Thickness, minimum spot | 0.305 mm | 0.012 in |
| Center Conductor Gauge | 14 AWG |
| Shield (Braid) Gauge | 34 AWG |
| Capacitance | 52.493 pF/m | 16 pF/ft |
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| Conductor dc Resistance | 9.514 ohms/km | 2.9 ohms/kft |
| Dielectric Strength, conductor to shield | 4000 Vdc |
| Jacket Spark Test Voltage | 5000 Vac |
| Nominal Velocity of Propagation (NVP) | 86 % |
| Structural Return Loss | 15 dB @ 1500–3000 MHz | 20 dB @ 10–1500 MHz |
| Structural Return Loss Test Method | 100% Swept Tested |
| Frequency | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
| 1.0 MHz | 0.300 | 0.090 |
| 10.0 MHz | 1.480 | 0.450 |
| 50.0 MHz | 2.950 | 0.900 |
| 100.0 MHz | 4.200 | 1.280 |
| 200.0 MHz | 6.070 | 1.850 |
| 400.0 MHz | 9.020 | 2.750 |
| 700.0 MHz | 12.860 | 3.920 |
| 900.0 MHz | 15.480 | 4.720 |
| 1000.0 MHz | 16.530 | 5.040 |
| 1450.0 MHz | 21.060 | 6.420 |
| 1800.0 MHz | 23.680 | 7.220 |
| 2200.0 MHz | 25.550 | 7.790 |
| 2500.0 MHz | 27.220 | 8.300 |
| 3000.0 MHz | 30.240 |
