Description
Brand

Description

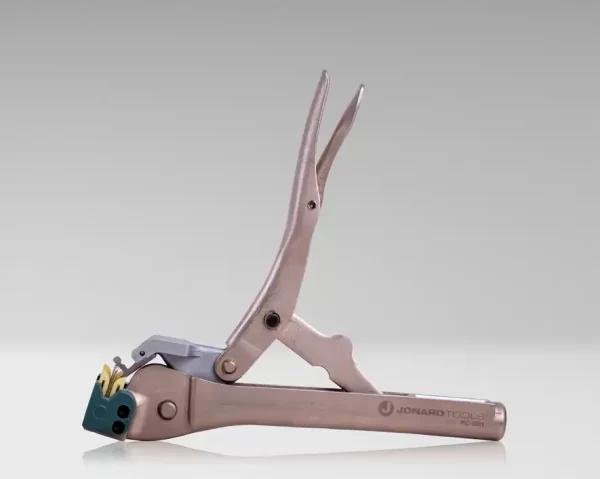

This vise-style MR1 hand tool is designed to crimp various AMP Picabond connectors onto 19 – 28 AWG wires. This crimper also features the following:

Moveable anvil and two fixed dies crimp the connector perfectly every time
Rubber wire supports hold wire in place while crimping
Built-in wire cutter locates the connector on the anvil and cuts excess wire during crimping
Vise-like handle snaps into place, ensuring highly uniform connections with every crimp
Fixed handle provides additional support during crimping
Compatible with AMP Picabond Connectors with the following stripe colors: Orange, Green, Purple, Red, and Yellow

Specifications

Connector Type	AMP Picabond Connectors (Striped Connectors)
Compatible Stripe Colors	Orange, Green, Purple, Red, & Yellow
Wire Range	28 AWG – 19 AWG
Tool Dimensions	7.75″ x 1.8″ x 2.6″ (19.7 cm x 4.6 cm x 6.6 cm)
Dimensions w/ Case	10.5″ x 7.5″ x 2.5″ (26.67 cm x 19.05 cm x 6.35 cm)
Dimensions	11 in x 5.37 in x 3.15 in (27.94 cm x 13.64 cm x 8 cm)
Weight	2.63 lb (1194.928 g)
UPC #	810053350751

Brand

Jonard
