Network/IT (Telecom) - Crimping Tools

(Part Number: PIC-G) – Picabond Crimping Tool – Network/IT (Telecom) – Crimping Tools – Testing Equipment – Jonard

Call for Price

Download Spec Sheet

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description
Brand

Description

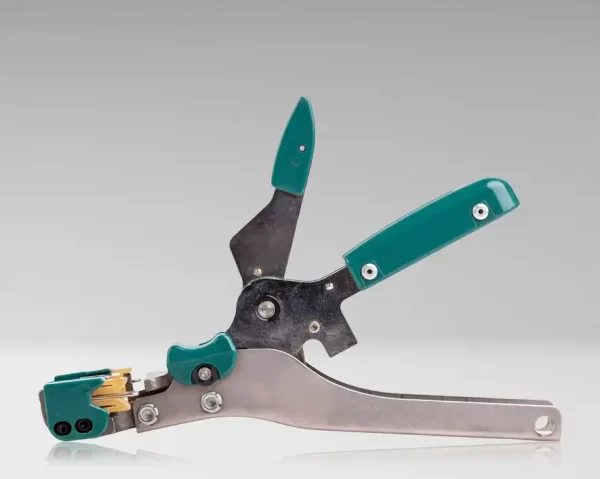

This VS-3 style hand tool is designed to crimp various AMP Picabond connectors onto 19 – 28 AWG wires. This crimper also features the following:

Moveable anvil and two fixed dies crimp the connector perfectly every time
Rubber wire supports hold wire in place while crimping
Built-in wire cutter locates the connector on the anvil and cuts excess wire during crimping
Unique moving handle pushes connectors into the crimping dies, ensuring highly uniform connections with every crimp
Fixed handle provides additional support during crimping
Compatible with AMP Picabond Connectors with the following stripe colors: Orange, Green, Purple, Green/Amber, Purple/Amber, Red, and Yellow

Specifications

Connector Type	AMP Picabond Connectors (Striped Connectors)
Compatible Stripe Colors	Orange, Green, Purple, Green/Amber, Purple/Amber, Red, & Yellow
Wire Range	28 AWG – 19 AWG
Tool Dimensions	7.75″ x 1.8″ x 2.6″ (19.7 cm x 4.6 cm x 6.6 cm)
Dimensions w/ Case	10.5″ x 7.5″ x 2.5″ (26.67 cm x 19.05 cm x 6.35 cm)
Dimensions	10.5 in x 7.5 in x 2.5 in (26.67 cm x 19.05 cm x 6.35 cm)
Weight	2.06 lb (935.24 g)
UPC #	810053350652

Brand

Jonard
