(Part Number: NTCPUG000285) – Electrical Materials – 27-1 – Cable Protector – 3-6in – Nylon – Cable Pulling – Cable Guides – Nylon Cable Protector – Electrical Materials Company

Description

Electrical Materials – 27-1 – Cable Protector, 3-6in, Nylon, Duct Shields

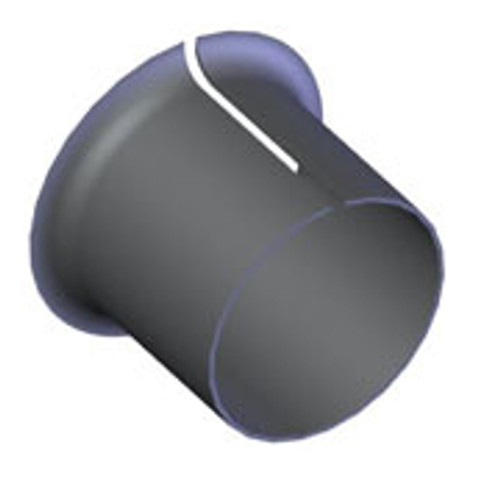

Flanged, split tube to insert in duct end and protect cable from damage during installation. Also can be left in place for permanent protection.

EMC Duct Shields are designed to protect cables and wires at duct entrances and riser “U” guard entrances.  Available in black or gray.

Features: This device protects your cable from sharp edges on all types of conduit and ends of cable risers

The EMC duct shield advantages are:

• Flexible Easily installed — squeeze and insert
• Corrosion resistant to cable lubricants
• Exceptional resistance to abrasion
• Very low coefficient of friction UV stabilized

Duct Range Inside Diameter [in]:
3 – 6

Duct Range Inside Diameter [mm]:
76 – 152

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08042300

Item Name:
3 – 6 Nylon Cable Protector

Package Type:
Each

Shipping Method:
Parcel

Similar to:
DCD 32560-300, 27-1

Units Per Package:
1

Weight [lb]:
0.140000

Weight [lb]:
.14
