$169.08

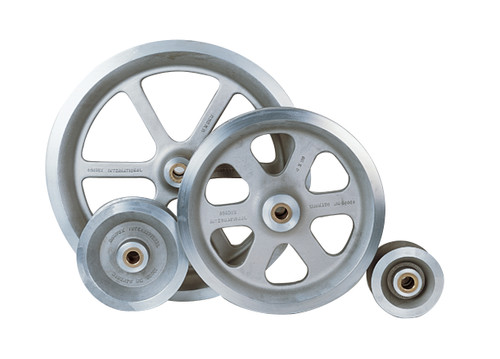

Replacement Sheave Assembly for the 5″ Cable Feeding Sheave, 4,000 lb. Hooked Hanger Sheave, Quadrant Block and the Corner Cable Guide.
The replacement sheave is for maximim cable OD of 5in (127mm). Sheaves are available in standard alloy or Nylatron for less abrasion with cable jackets.
Max 4,000lb (17,792N) tension working load.
Freight Class:
50
Height [in]:
7
Length [in]:
13
Packaging Type:
Boxes
Width [in]:
13
Item #:
08042612
Item Name:
5 x 11 Replacement Sheave – Alloy
Maximum Cable Diameter [in]:
5.00
Maximum Cable Diameter [mm]:
127
Maximum Width [in]:
5.88
Maximum Width [mm]:
149
Minimum Bending Radius [in]:
3.25
Minimum Bending Radius [mm]:
82
Outside Diameter [in]:
11
Outside Diameter [mm]:
279
Package Type:
Each
Shaft [in]:
1.25
Shaft [mm]:
32
Shipping Height [in]:
7
Shipping Length [in]:
13
Shipping Method:
Parcel
Shipping Width [in]:
13
Similar to:
DCD 32900-511
Size [in]:
5 x 11
Tension Working Load [lb]:
4000
Tension Working Load [Newton]:
17792
Unit of Measure:
EA.
Units Per Package:
1
Variation:
Alloy
Weight [lb]:
16.000000
