(Part Number: NTCPUG000244) – 4″ Quadrant Block w/ Nylatron Sheaves – Cable Pulling – Cable Guides – Heavy Duty Quadrant Block – Condux International

Description

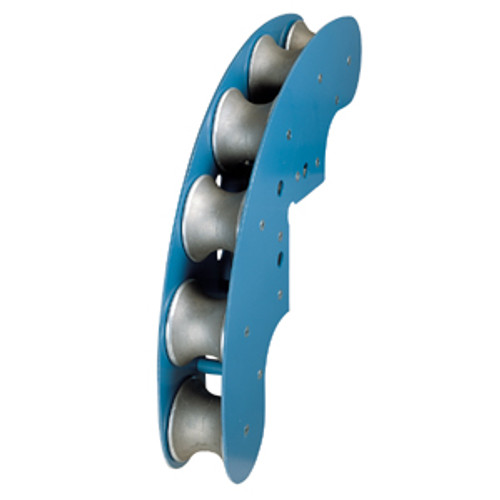

A series of 6 Nylatron sheaves on bronze bearings allow cable to make a gradual 90 degree turn for easy pulling through manhole opening. This quadrant block can also be suspended in manhole to provide alignment to duct run.

The manhole support bar is sold separately, and replacement sheaves are available.

Bend Radius [cm]:
61.6

Bend Radius [in]:
24.25

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08539110

Item Name:
4 Quadrant Block w/ Nylatron Sheaves

Package Type:
Each

Sheave Diameter [in]:
4

Sheave Diameter [mm]:
102

Shipping Method:
LTL

Tension Working Load [lb]:
4800

Tension Working Load [Newton]:
21350

Units Per Package:
1

Weight [lb]:
96.000000
