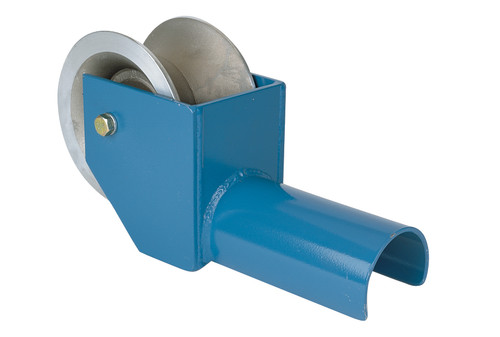

(Part Number: NTCPUG000175) – 3.0″ Cable Feeding Sheave – Cable Pulling – Cable Guides – Cable Feeding Sheaves – Condux International

Description

Cable Feeding Sheaves

Plugs into conduit in manhole wall, guiding cable safely into the conduit regardless of the pulling angle. Replacement sheaves are available in standard alloy or Nylatron for less abrasion with cable jackets.

Height [in]:
10

Length [in]:
10

Width [in]:
10

Inside Diameter [in]:
2.62

Inside Diameter [mm]:
67

Item #:
08617230

Item Name:
3.0 Cable Feeding Sheave

Length [in]:
12

Length [mm]:
305

Nominal Size [in]:
3

Nominal Size [mm]:
76

Outside Diameter [in]:
2.95

Outside Diameter [mm]:
75

Package Type:
Each

Shipping Method:
Parcel

Similar to:
32500-300, 70564, 441-3

Slot Width [in]:
2.25

Slot Width [mm]:
57

Units Per Package:
1

Variation:
Alloy

Weight [lb]:
18.000000

Working Load Limit [lb]:
4800

Working Load Limit [Newton]:
21350
