(Part Number: NTCPUG000165) – 58″ Base Section with Locking Pins – Cable Pulling – Cable Guides – Jamb Skid – Condux International

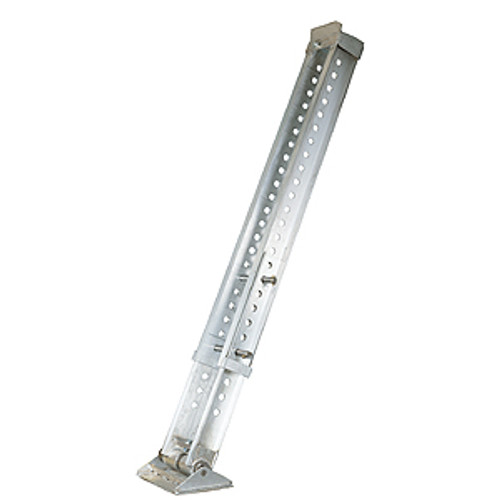

Constructed of solid aluminum, the Jamb Skid is both strong and lightweight. In most instances it can be installed by one person. The complete unit is created by combining a base unit with one of several extension units, depending on the height required. Locking 1-1/4″ (32 mm) pins allow for the height adjustment of the Jamb Skid.

Also the width adjusts to accept all Condux sheave assemblies up through 8″ (203 mm).

Order base section and choice of extension separately for a complete Jamb Skid unit. Locking pins are included with the base section.

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08097000

Item Name:
58 Base Section with Locking Pins

Length [in]:
58

Length [mm]:
1168

Package Type:
Each

Shipping Method:
LTL

Similar to:
GMP 70640, DCD 32700-000

Type of Handling Units:
PLT

Units Per Package:
1

Weight [lb]:
73.000000

Working Load [lb]:
10000

Working Load [Newton]:
44480
