(Part Number: NTCPUG000159) – 5 x 20 Hooked Hanger Sheave 4K – Cable Pulling – Condux International

Description

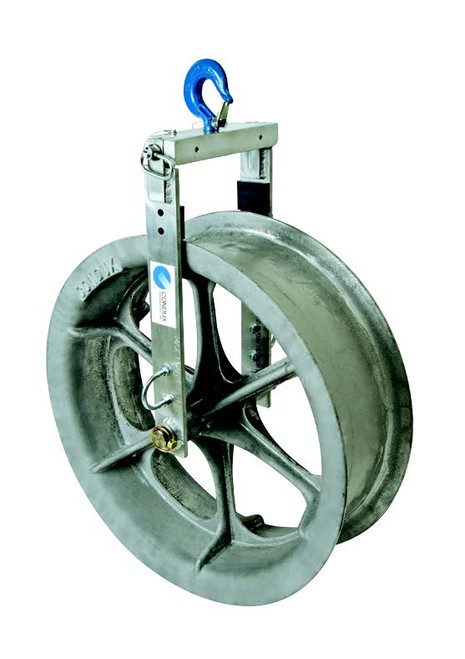

The Condux Hooked Hanger Sheaves provide a way to guide cable during underground manhole pulls, and they also may be used as pulleys during cell tower cable installations. These sheave and hanger assemblies have either a rating of 10,000 LBS. (44,480 Newtons) or 4,000 LBS. (17,600 Newtons). Replacement arms, sheaves and pins are available. The sheaves may be available in either aluminum or Nylatron.

Freight Class:
50

Height [in]:
10

Length [in]:
10

Packaging Type:
Boxes

Width [in]:
10

Item #:
08042620

Item Name:
5 x 20 Hooked Hanger Sheave 4K

Material:
Aluminum

Maximum Cable Diameter [in]:
5.00

Maximum Cable Diameter [mm]:
127

Maximum Tension [lb]:
4000

Maximum Tension [Newton]:
17600

Minimum Bending Radius [in]:
8

Minimum Bending Radius [mm]:
203

Package Type:
Each

Shaft [in]:
1.25

Shaft [mm]:
32

Sheave Diameter [in]:
20

Sheave Diameter [mm]:
508

Shipping Height [in]:
30

Shipping Length [in]:
30

Shipping Method:
LTL

Shipping Width [in]:
12

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
38.000000

Weight [lb]:
38

Width [in]:
5.75

Width [mm]:
146
