(Part Number: NTCPUG000143) – 1″ x 3″ Replacement Sheave – Alloy – Cable Pulling – Condux International

Description

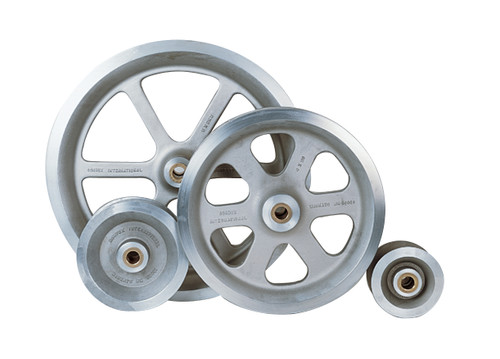

Replacement Sheave Assembly for the 1″ Cable Feeding Sheave.

The replacement sheave is for maximim cable OD of 1.5in (38mm). Sheaves are available in standard alloy or Nylatron for less abrasion with cable jackets.

Max 10,000lb (44,480N) tension working load.

Height [in]:
3

Length [in]:
5

Width [in]:
5

Item #:
08539308

Item Name:
1 x 3 Replacement Sheave – Alloy

Maximum Cable Diameter [in]:
1.5

Maximum Cable Diameter [mm]:
38

Maximum Width [in]:
3

Maximum Width [mm]:
76

Minimum Bending Radius [in]:
0.75

Minimum Bending Radius [mm]:
19

Outside Diameter [in]:
3

Outside Diameter [mm]:
76

Package Type:
Each

Shaft [in]:
0.62

Shaft [mm]:
15

Shipping Height [in]:
3

Shipping Length [in]:
5

Shipping Method:
Parcel

Shipping Width [in]:
5

Size [in]:
1 x 3

Tension Working Load [lb]:
10000

Tension Working Load [Newton]:
44480

Unit of Measure:
EA.

Units Per Package:
1

Variation:
Alloy

Weight [lb]:
1.250000
