(Part Number: NTCPSJ000506) – 1-5/8″ 819 Series Directional Drill Swivel 8500 lb. – Underground Materials – Directional Drilling Swivels – 819 Directional Drilling Swivels – Condux International

Description

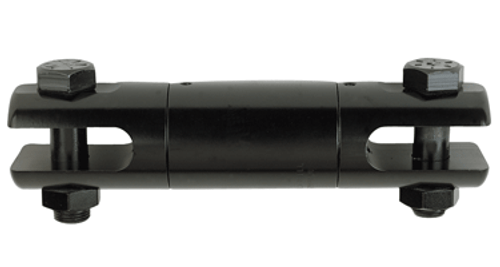

Designed specifically for directional drilling, the Condux 819 D.Drill Swivels prevent boring equipments’ rotational torque from interfering with the product (cable or conduit) being pulled. The D.Drill Swivels are grease-able and double sealed to keep contaminants out. Clevis pins with hex nuts allow for installation and removal from either side of the swivel. There is a 90 day warranty on the directional drill swivels.

CAUTION: To be used for directional drilling only.
CAUTION: Condux requires the use of a calcium based lubricant only. Other lubricants may have adverse reactions when exposed to bentonite products. Condux requires that the swivels be flushed with grease after each use to purge any contaminants that may have penetrated past the seals into the swivel while boring.

Compatible Swivel Grease:
08190007, Directional Drilling Grease

Compression Working Load [lb]:
2800

Compression Working Load [Newton]:
12454

Diameter [in]:
1.625

Diameter [mm]:
41

Entire Slot Depth [in]:
1.59

Entire Slot Depth [mm]:
40

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08190016

Item Name:
1-5/8 819 Series Directional Drill Swivel 8500 lb.

Length [in]:
6.85

Length [mm]:
174

Maximum Outside Diameter [in]:
2.36

Maximum Outside Diameter [mm]:
60

Package Type:
Each

Pin Center [in]:
.78

Pin Center [mm]:
20

Pin Diameter [in]:
.56

Pin Diameter [mm]:
14

Replacement Part:
08190104, 1-5/8 Clevis Bolt for 819 D.Drill Swivel|02250500, Lock Nut for 1-5/8 819 D.Drill Clevis Bolt

Shipping Method:
Parcel

Similar to:
Lewis HD-x-DBS, DCD 00503-205, dub, lite, dw, double clevis, 401-283, sealed thrust

Slot Width [in]:
.63

Slot Width [mm]:
16

Tension Working Load [lb]:
8500

Tension Working Load [Newton]:
37808

Type of Packages:
275

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
3.260000

Weight [lb]:
3.26

Width [in]:
31
