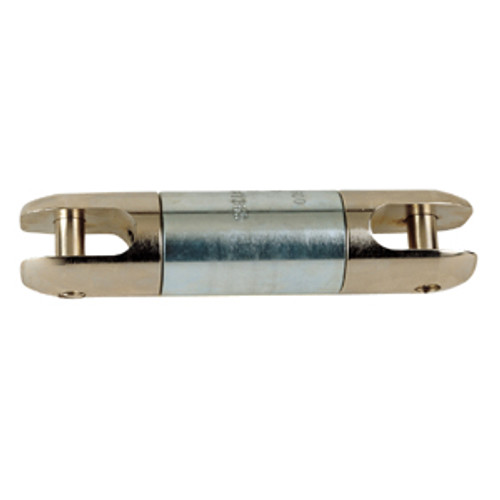

(Part Number: NTCPSJ000403) – 7/8″ Breakaway Swivel 800 lbs Break Load – Cable Pulling – Swivels – Breakaway Swivels – Condux International

Description

Essential for fiber optic and coaxial cable pulling, these swivels have a break load ranging from 150 – 1,800 pounds (667 – 8,006 N) and are designed to separate at ?10% of their rated break load.? If the load rating is exceeded, the interior break pin fractures, the swivel separates, and the cable remains undamaged.? Break pin is easily replaceable.

Break Load [lb]:
800

Break Load [Newton]:
3558

Color:
Red/Yellow

Diameter [in]:
0.875

Diameter [mm]:
22

Entire Slot Depth [in]:
1.06

Entire Slot Depth [mm]:
27

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08018700

Item Name:
7/8 Breakaway Swivel 800 lbs Break Load

Length [in]:
4.51

Length [mm]:
115

Package Type:
Each

Pin Center [in]:
.53

Pin Center [mm]:
13

Pin Diameter [in]:
.31

Pin Diameter [mm]:
8

Replacement Break Pin:
08018805

Shipping Height [in]:
5

Shipping Length [in]:
10

Shipping Method:
Parcel

Shipping Width [in]:
5

Similar to:
Green lee 39298, 39306, DCD 00550-010, 00535-008, GMP 53703, 34342

Slot Width [in]:
0.38

Slot Width [mm]:
10

Units Per Package:
1

Weight [lb]:
0.750000
