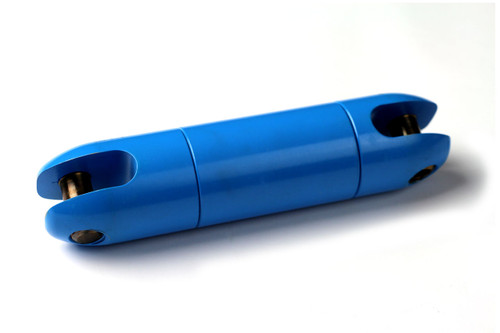

(Part Number: NTCPSJ000323) – 2″ 400 Series Directional Drill Swivel 10,000lb – Underground Materials – Condux International

Description

Designed specifically for directional drilling, the Condux 400 D.Drill Swivels prevent boring equipments’ rotational torque from interfering with the product (cable or conduit) being pulled. The D.Drill Swivels are greasable and double sealed to keep contaminants out. There is a 90 day warranty on the directional drill swivels.

CAUTION: To be used for directional drilling and underground cable installation only.
CAUTION: Condux requires the use of a calcium based lubricant only. Other lubricants may have adverse reactions when exposed to bentonite products. Condux requires that the swivels be flushed with grease after each use to purge any contaminants that may have penetrated past the seals into the swivel while boring.

Compatible Swivel Grease:
08190007, Directional Drilling Grease

Compression Working Load [lb]:
3300

Compression Working Load [Newton]:
14678

Diameter [in]:
2

Diameter [mm]:
51

Entire Slot Depth [in]:
1.77

Entire Slot Depth [mm]:
45

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08190420

Item Name:
2 400 Series Directional Drill Swivel 10,000lb

Length [in]:
8.29

Length [mm]:
210

Obsolete Part Number:
08190420

Package Type:
Each

Pin Center [in]:
.71

Pin Center [mm]:
18

Pin Diameter [in]:
.63

Pin Diameter [mm]:
16

Replacement Part:
21000391, 2 Clevis Pin for 808 & 210 Champion Swivels & 400 D.Drill Swivel

Shipping Height [in]:
3.625

Shipping Length [in]:
9.25

Shipping Method:
Parcel

Shipping Width [in]:
4.375

Similar to:
Lewis HD-2-s-z, hd2sz, dub, lite, sealed thrust, clevis by clevis, dcd 00503-205, DB-2000, Triple D

Slot Width [in]:
.75

Slot Width [mm]:
19

Tension Working Load [lb]:
10000

Tension Working Load [Newton]:
44480

Type of Packages:
275

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
6.000000

Weight [kg]:
2.72

Weight [lb]:
6
