(Part Number: NTCPSJ000272) – Multiple Pulling Harness – 3 Way 1/2 Inch Cable – Cable Pulling – Condux International

Description

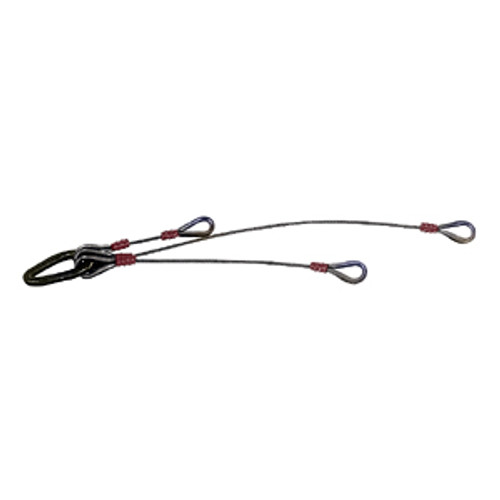

3 Way 1/2 Inch Cable Multiple Pulling Harness
Allows staggered attachment to cable or innerduct when pulling through conduit systems or during directional drilling pull-back operations. Other harness combinations available upon request. Contact factory for details.
NOTE: All harnesses are sequentially staggered except the 10 & 12 Way 3?8″ (10 mm) harnesses only have a single stagger.

Diameter [in]:
0.87

Diameter [mm]:
22

Freight Class:
50

Height [in]:
10

Length [in]:
10

Packaging Type:
Boxes

Width [in]:
10

Item #:
08549332

Item Name:
Multiple Pulling Harness – 3 Way 1/2 Inch Cable

Maximum Width [in]:
4.5

Maximum Width [mm]:
114

Number of Legs:
3

Package Type:
Each

Shipping Method:
Parcel

Thickness [in]:
.5

Thickness [mm]:
12.7

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
8.810000

Working Load Combined [lb]:
6000

Working Load Combined [Newton]:
26689

Working Load [lb]:
7000

Working Load [Newton]:
31136
