(Part Number: NTCPSJ000268) – Multiple Pulling Harness – 4 Way 1/4 Inch Cable – Cable Pulling – Cable Pulling Accessories – Multiple Pulling Harness – Condux International

Description

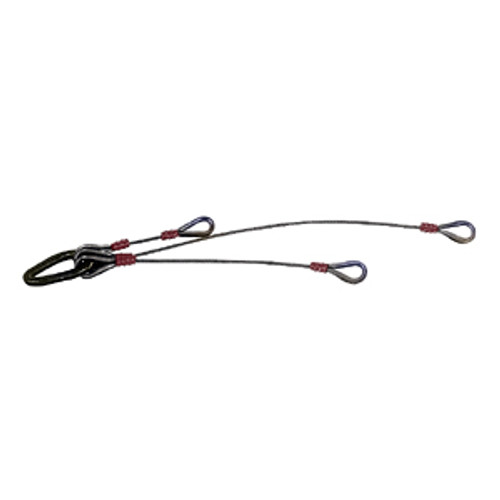

4 Way 1/4 Inch Cable Multiple Pulling Harness
Allows staggered attachment to cable or innerduct when pulling through conduit systems or during directional drilling pull-back operations. Other harness combinations available upon request. Contact factory for details.
NOTE: All harnesses are sequentially staggered except the 10 & 12 Way 3?8″ (10 mm) harnesses only have a single stagger.

Diameter [in]:
0.37

Diameter [mm]:
10

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08549325

Item Name:
Multiple Pulling Harness – 4 Way 1/4 Inch Cable

Maximum Width [in]:
2

Maximum Width [mm]:
51

Number of Legs:
4

Package Type:
Each

Shipping Method:
Parcel

Thickness [in]:
0.25

Thickness [mm]:
6.35

Units Per Package:
1

Weight [lb]:
2.810000

Working Load Combined [lb]:
4200

Working Load Combined [Newton]:
18682

Working Load [lb]:
1400

Working Load [Newton]:
6228
