$317.73
1.50-1.99″ cable dia., 16400lb

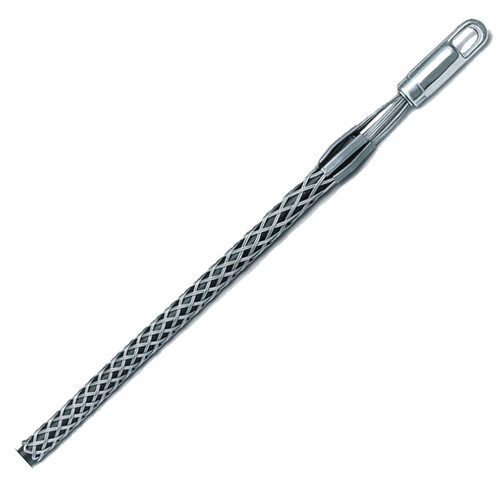

Rotating Eye, K-Type Pulling Grips are made of high strength galvanized steel strand. All grips feature double weave mesh for greater strength and added mesh contact on the cable, to handle longer or heavier pulling jobs. The forged eye mates easily with a swivel or shackle. They are specially designed for use in the installation of underground power cables, communication lines and service lines into factories, shopping centers, construction projects and general underground electrical construction.
Cable Diameter Range [in]:
1.50 to 1.99
Cable Diameter Range [mm]:
38 to 51
Extended Part Number:
033-01-017
Eye Length [in]:
7
Eye Length [mm]:
178
Height [in]:
10
Length [in]:
10
Width [in]:
10
Item #:
08642049
Item Name:
K Type Grips – Short Forged Eye 1.50-1.99
Mesh Length at Nominal Diameter [mm]:
635
Outer Diameter of Rotating Eye [in]:
0.33
Outer Diameter of Rotating Eye [mm]:
35
Package Type:
Each
Shipping Method:
Parcel
Thickness of Eye [in]:
0.525
Thickness of Eye [mm]:
13
Type of Handling Units:
BAG – Bag
Units Per Package:
1
Weight [lb]:
2.280000
Weight [lb]:
2.75
