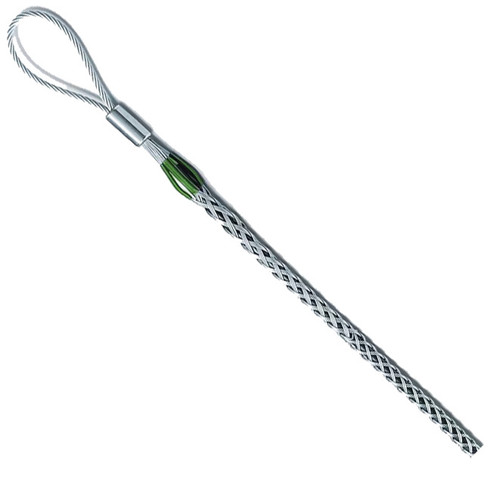

(Part Number: NTCPGE000476) – Multiple Strength Grip – Flexible Eye 3.00-3.49″ – Cable Pulling – Pulling Grips – Overhead Pulling Grips – Multiple Strength Grip Flexible Eye – Condux International

Description

3.00-3.49″ cable dia.

Multiple Strength Pulling Grips are designed for pulling ACSR, aluminum or copper bare conductor, ground wires, messenger strands, wire rope and insulated cables. They are ideal for overhead transmission and distribution line stringing where moderate loading is anticipated. They are economical tools used for attaching conductors to pulling lines and double socking for conductor-to-conductor connections.

Cable Diameter Range [in]:
3.00 to 3.49

Cable Diameter Range [mm]:
76 to 89

Color:
Aluminum

Extended Part Number:
033-02-1080

Eye Cable Diameter [in]:
0.625

Eye Cable Diameter [mm]:
16

Eye Length [in]:
18

Eye Length [mm]:
457

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08641961

Item Name:
Multiple Strength Grip – Flexible Eye 3.00-3.49

Mesh Length at Nominal Diameter [mm]:
1372

Package Type:
Each

Shipping Method:
Parcel

Type of Handling Units:
BAG – Bag

Units Per Package:
1

Weight [lb]:
5.820000

Weight [lb]:
6.5
